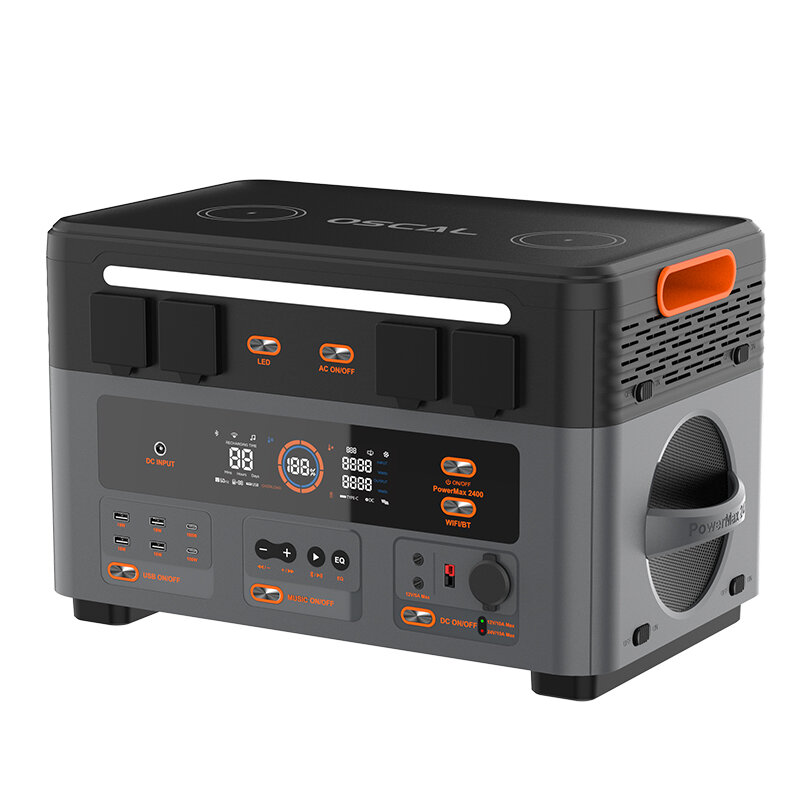

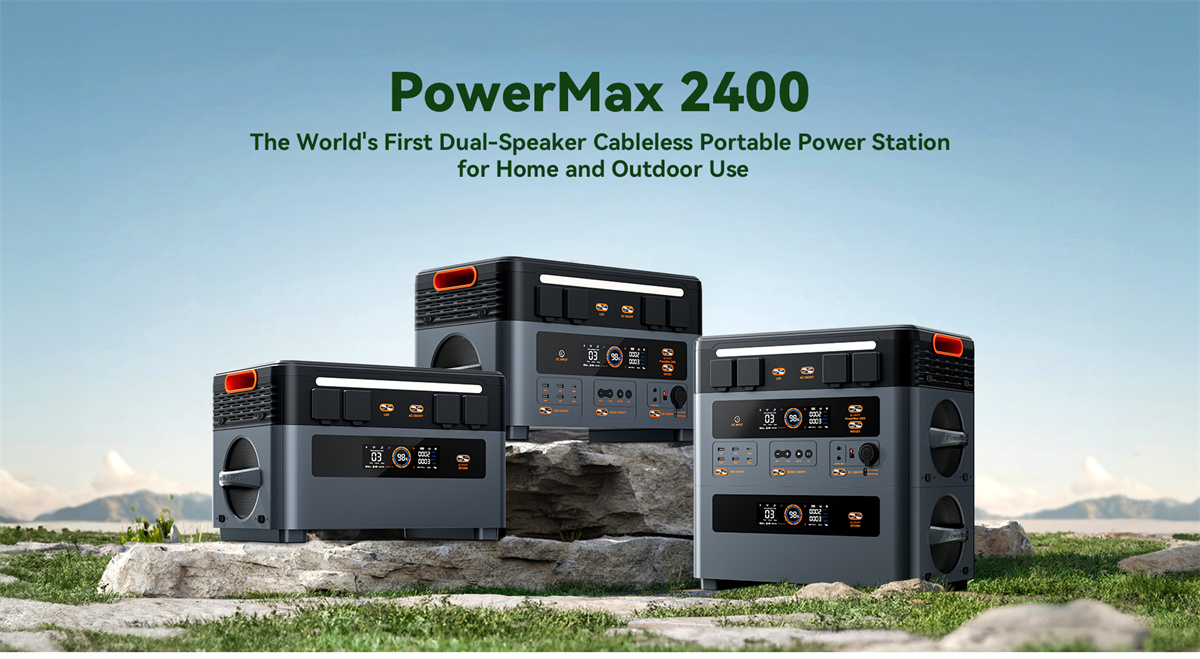

Blackview OSCAL PowerMax2400 Dual-speaker Portable Power Station with Solar Panel Kit/Battery Pack Kit 1872Wh to 20592Wh LiFePO4 Battery Pack Power Bank with 16 Outlets Wireless Charging Emergency Power Backup for Camping House Trolling

Specifications:

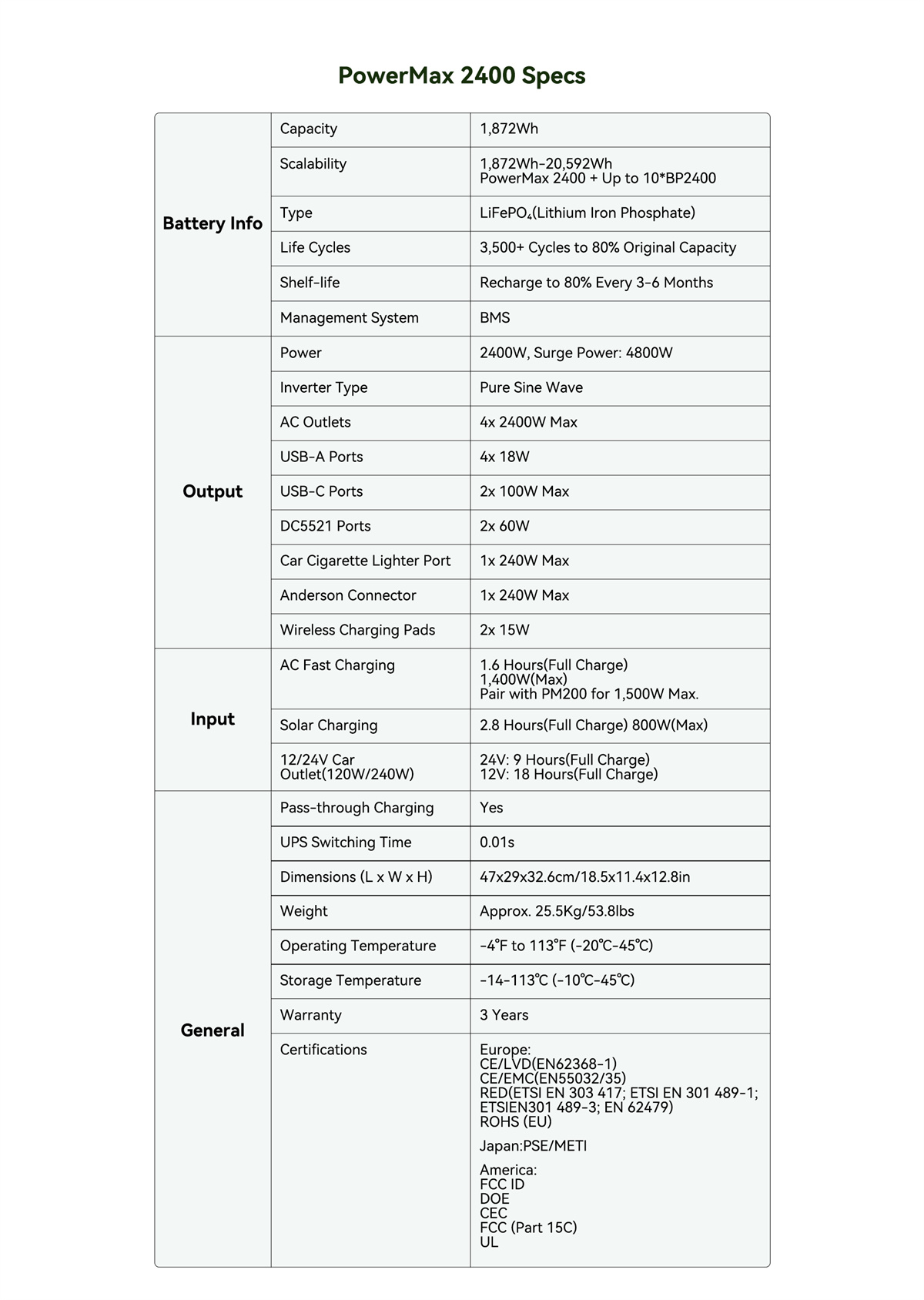

Blackview Oscal PowerMax2400:

Battery Info	Capacity: 1,872Wh Scalability: 1,872Wh~20,592Wh (PowerMax 2400 + Up to 10*BP2400) Type: LiFePO₄ (Lithium Iron Phosphate) Life Cycles: 3,500+ Cycles to 80% Original Capacity Shelf-life: Recharge to 80% Every 3-6 Months Management System: BMS

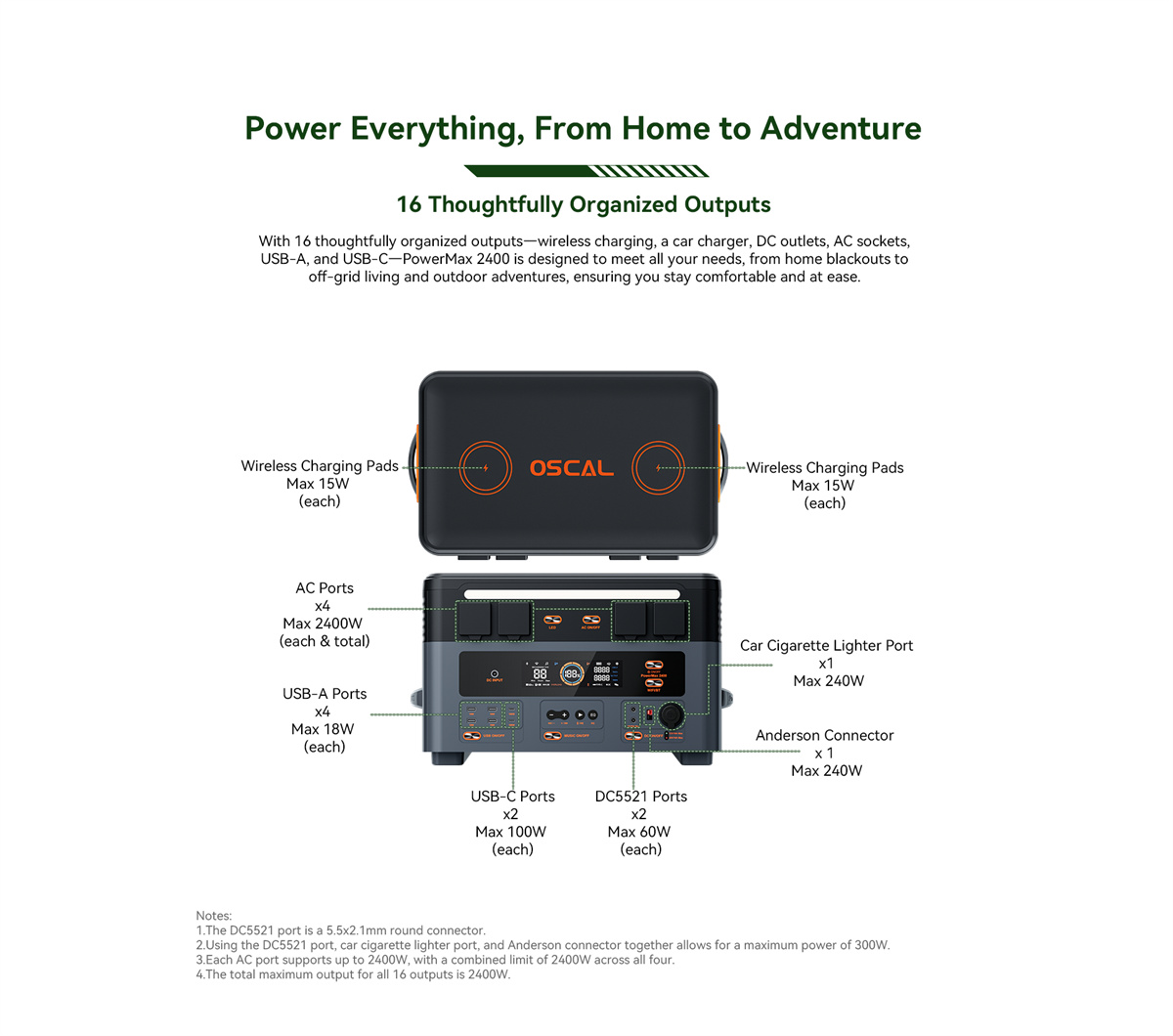

Output	Power: 2400W, Surge Power: 4800W Inverter Type: Pure Sine Wave AC Outlets: 4x 2400W Max USB-A Ports: 4x 18W USB-C Ports: 2x 100W Max DC5521 Ports: 2x 60W Car CigarettesLighter Port: 1x 240W Max Anderson Connector: 1x 240W Max Wireless Charging Pads: 2x 15W

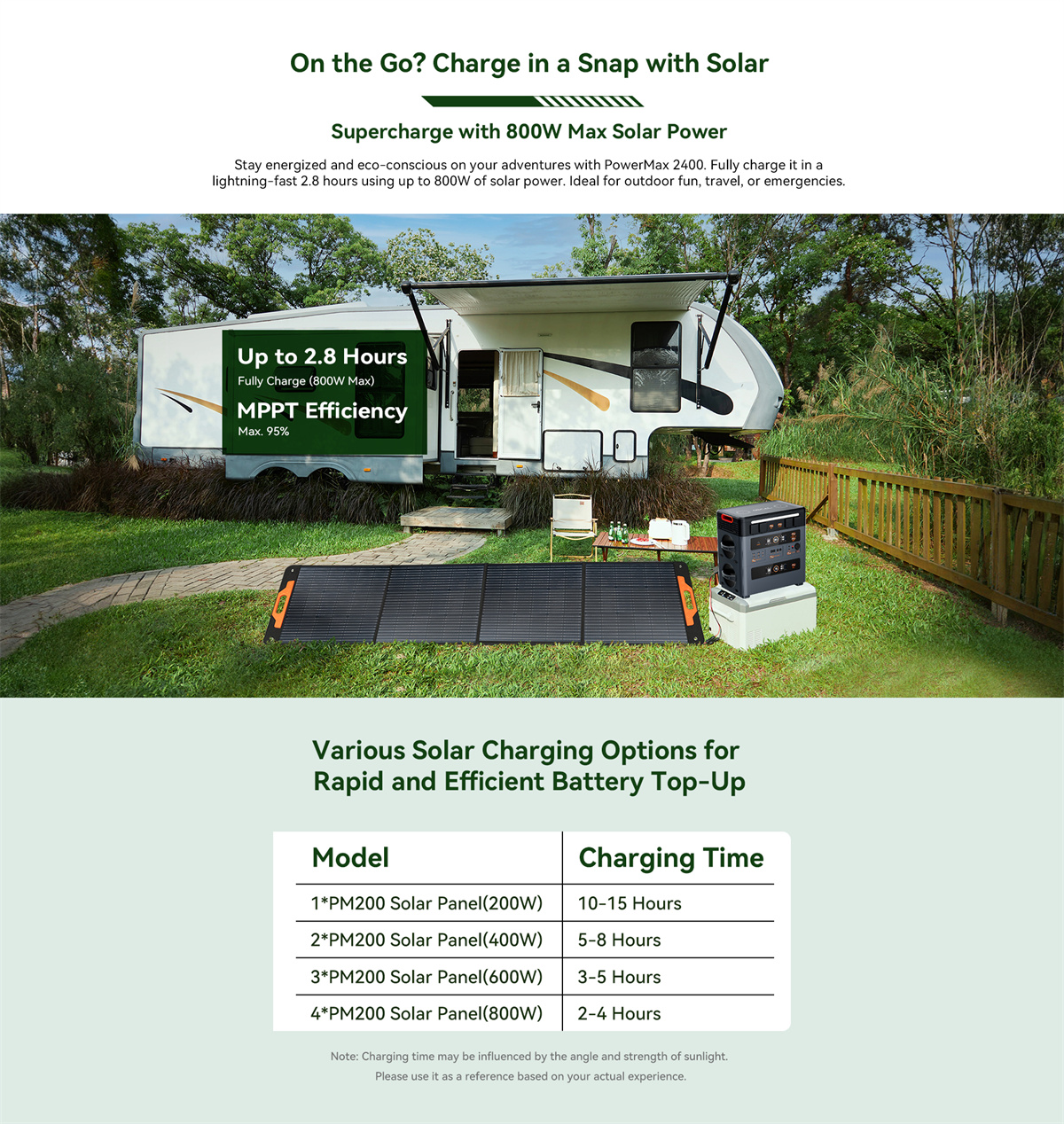

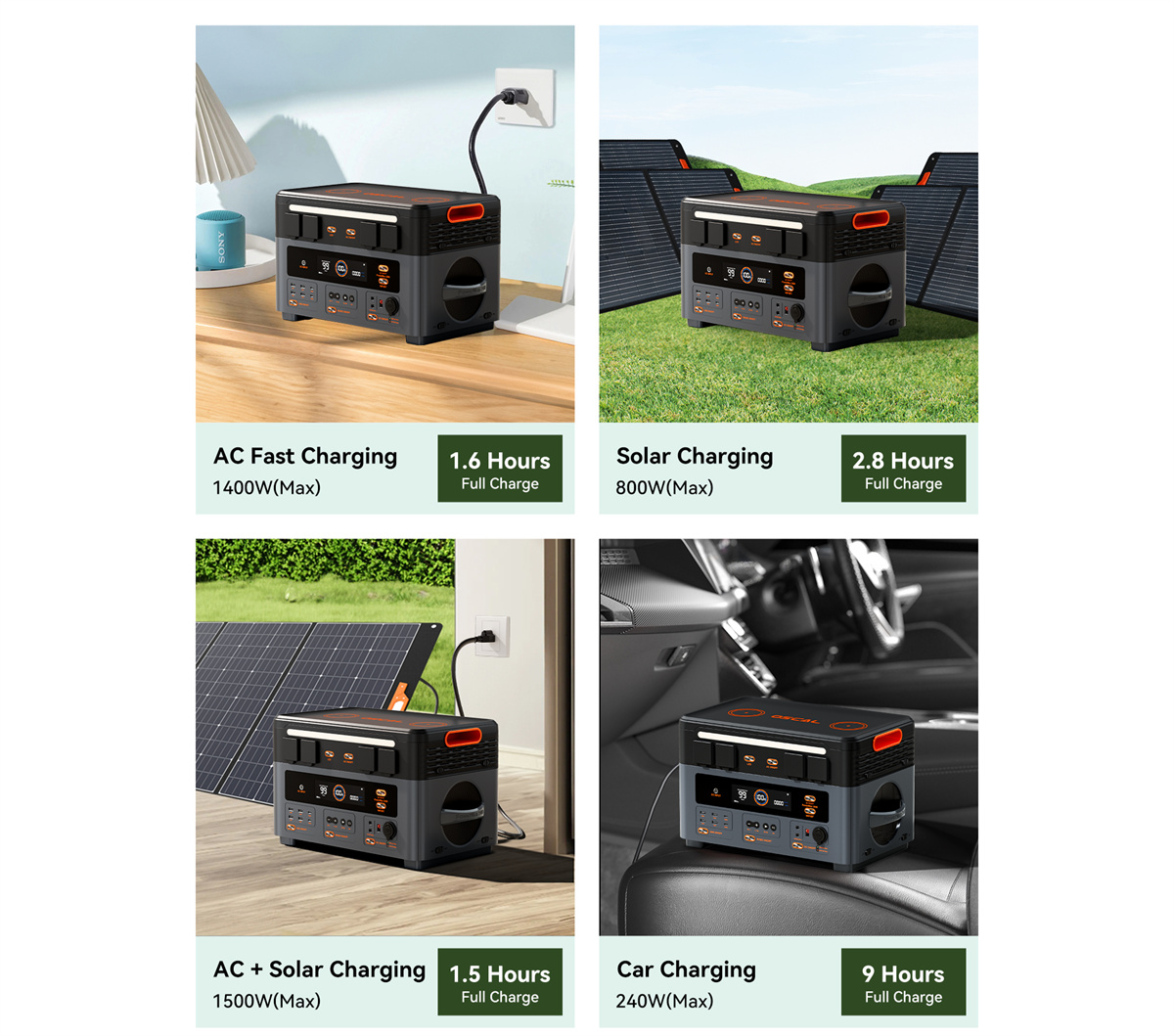

Input	AC Fast Charging: 1.6 Hours (Full Charge) 1400W(Max) Pair with PM200 for 1500W Max Solar Charging: 2.8 Hours (Full Charge) 800W(Max) 12/24V Car Outlet (120W/240W): 24V: 9 Hours (Full Charge) 12V: 18 Hours (Full Charge)

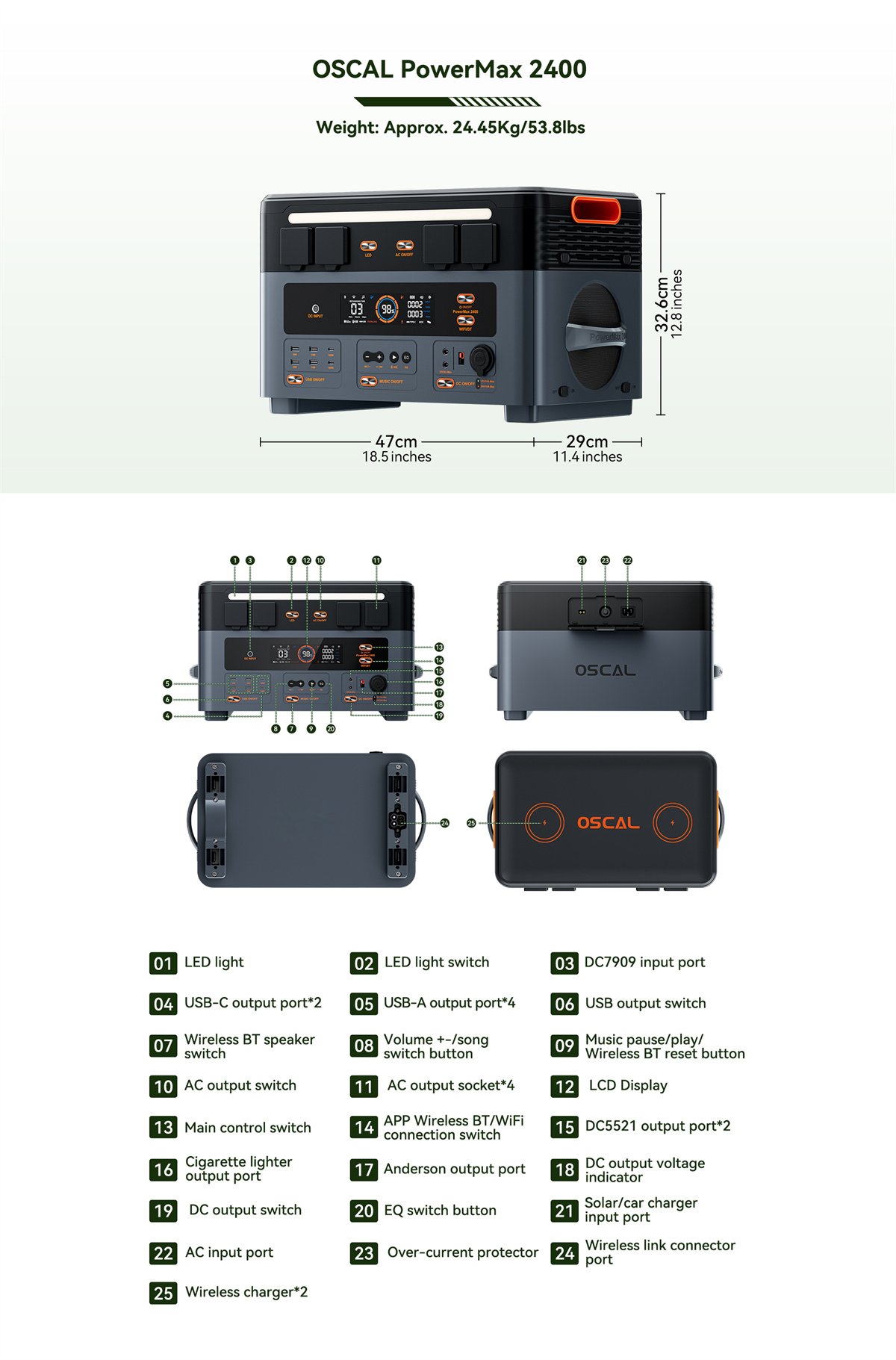

General	Pass-through Charging: Yes UPS Switching Time: 0.01s Dimensions (L x W x H): 47x29x32.6cm / 18.5x11.4x12.8in Weight: Approx. 25.5Kg / 53.8lbs Operating Temperature: -4°F to 113°F (-20°C~45°C) Storage Temperature: -14~113°F (-10°C~45°C) Certifications: Europe: CE/LVD (EN62368-1) CE/EMC (EN55032/35) RED (ETSI EN 303 417; ETSI EN 301 489-1; ETSI EN 301 489-3; EN62479) ROHS (EU) Japan: PSE/METI America: FCC ID DOE CEC FCC (Part 15C) UL

PM100/200/400 Solar Panel:

PM100 Solar Panel	Max.power (ppm): 100W±5% Max.power Current(lm): 5.05A±5% Max.power Voltage(Vm):19.8V±5% Open Circuit Voltage:24.7V+5% Short Circuit Current5.6A±5% Cell Lamination:ETFE Cell Type:MonocrystallineSiicon Transformation efficiency:≥23% Operating Temperature:-10-+65℃ Item Weight: 3.8kg±1kg Dimension (Unfolded): 1228*536*25mm Dimension(Folded):536*608*38mm Product Dimensions:590*350*441mm

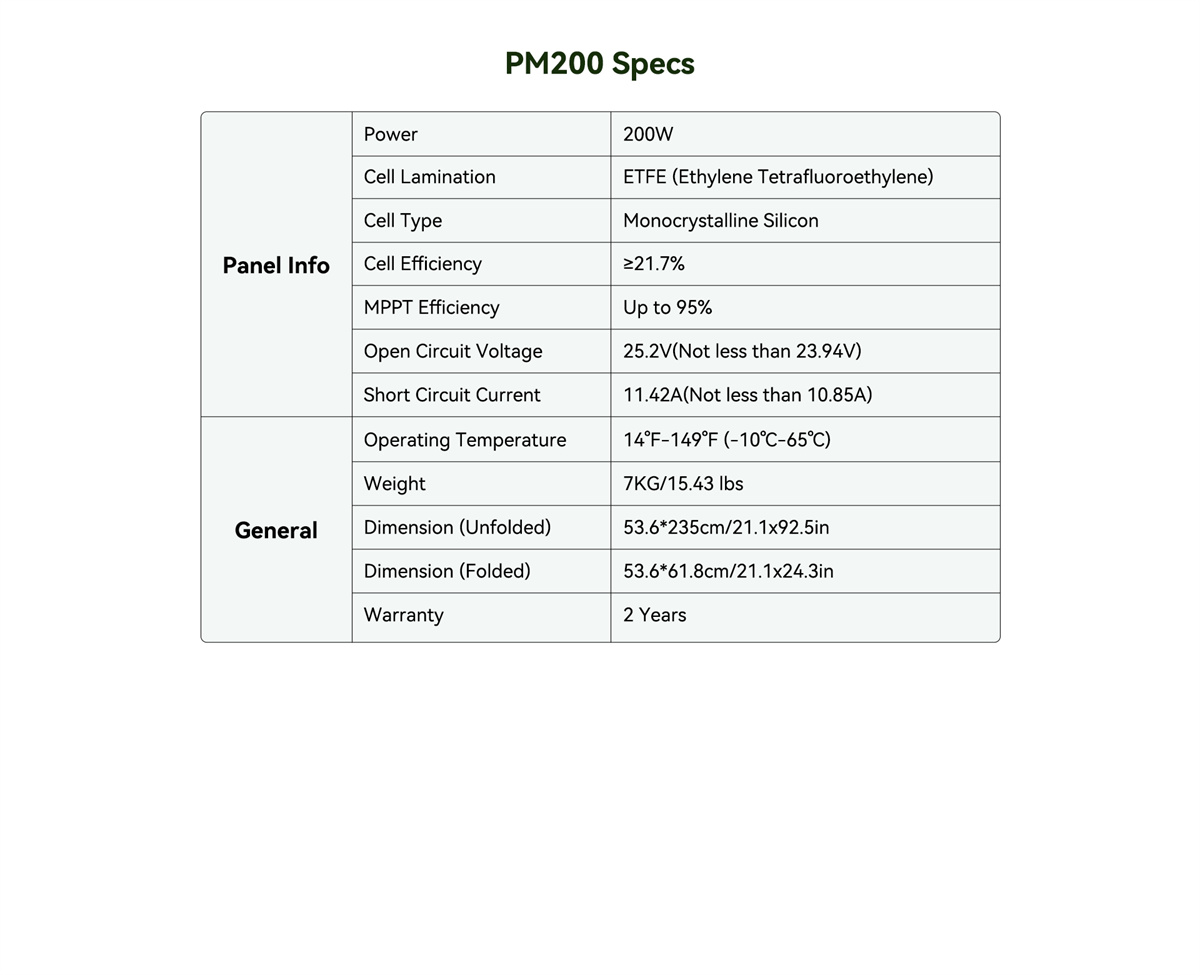

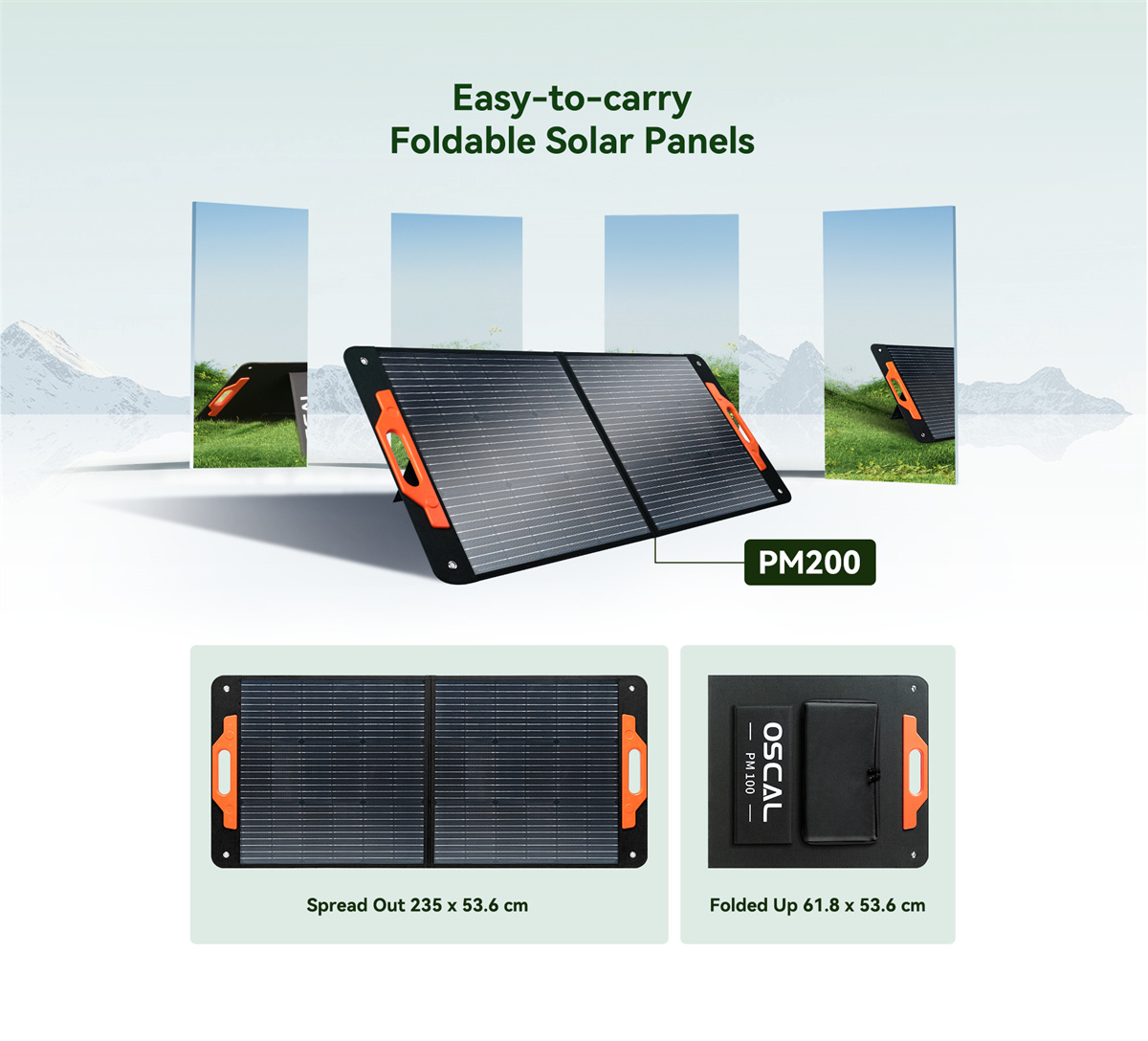

PM200 Solar Panel	Max.power (ppm): 200W±5% Max.power Current(lm): 9.52A±5% Max.power Voltage(Vm):21V±5% Open Circuit Voltage: 25.2V±5% Short Circuit Current:11.42A±5% Cell Lamination:ETFE Cell Type:Monocrystalline silicon Transformation efficiency:≥21.7% Operating Temperature:-10-+65℃ Item Weight:7kg±1kg Dimension (Unfolded): 2349*536*25mm Dimension (Folded):536*618*54mm
PM400 Solar Panel	Max.power (ppm): 400W±5% Max.power Current(im): 10.1A±5% Max. power Voltage(Vm): 39.6V±5% Open Circuit Voltage: 47.52V±5% Short Circuit Current:11.11A±5% Cell Lamination:ETFE Cell Type:Monocrystalline Sillicon Transformation efficiency:z22.7% Operating Temperature:-10-+65℃ Item Weight: 17kg+1kg Dimension(Unfolded):2333*1048*25mm Dimension (Folded):532*1000*63mm

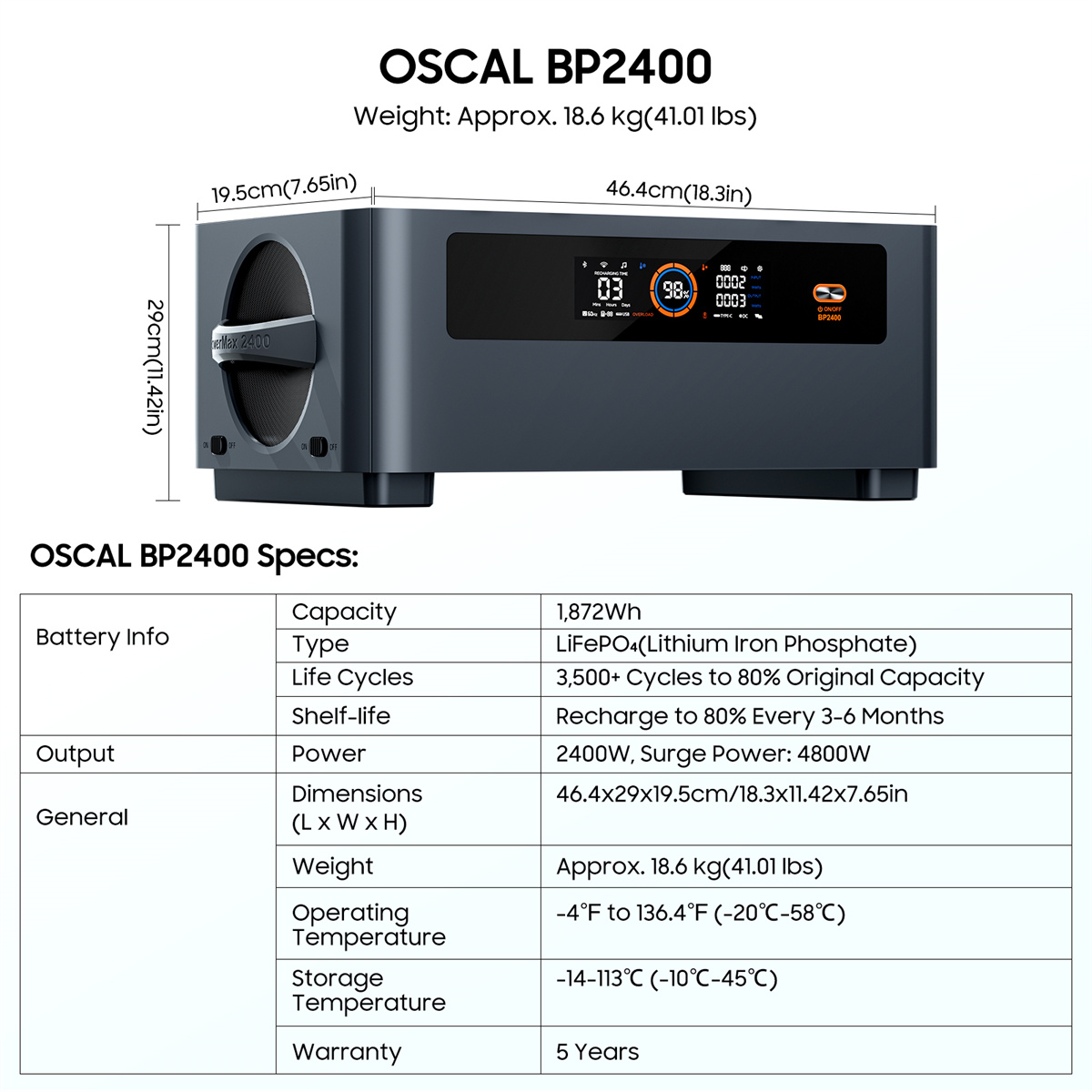

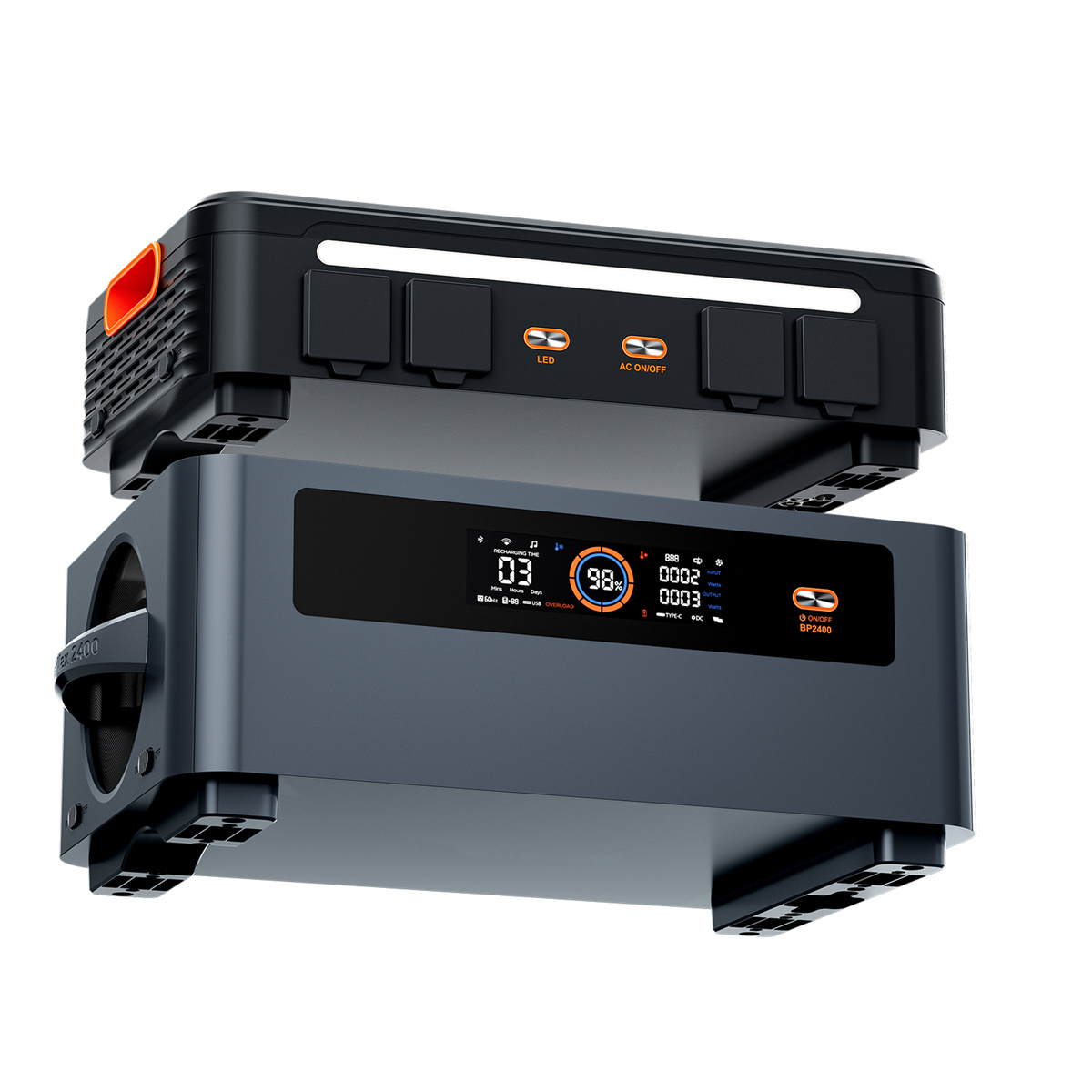

Blackview Oscal BP2400 Battery Pack:

Capacity	1,872Wh
Type	LiFePO₄ (Lithium Iron Phosphate)

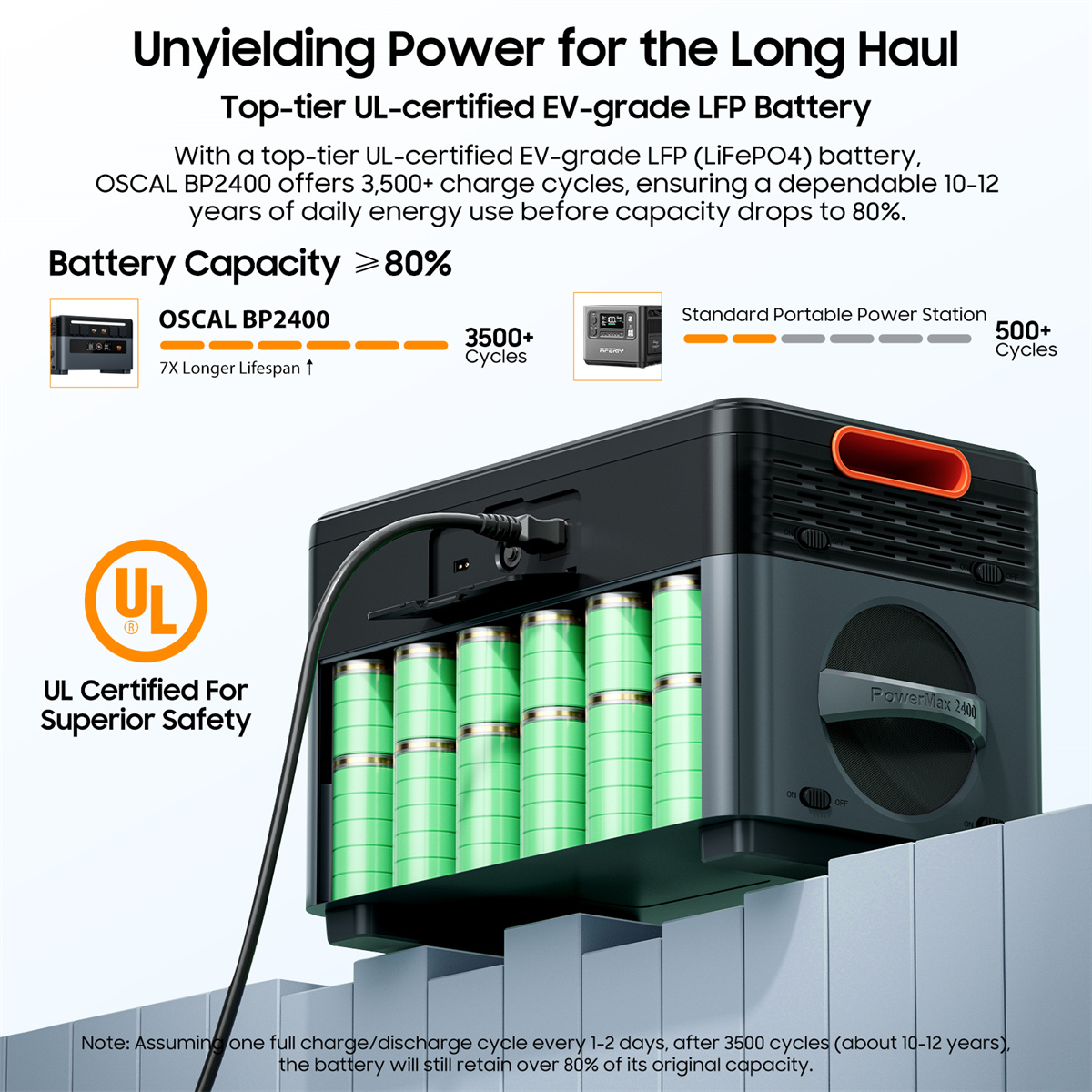

Life Cycles	3,500+ Cycles to 80% Original Capacity
Shelf-life	Recharge to 80% Every 3-6 Months
Output Power	2400W, Surge Power
Dimensions (L x W x H)	46.4 x 29 x 19.5 cm / 18.3 x 11.42 x 7.65 in

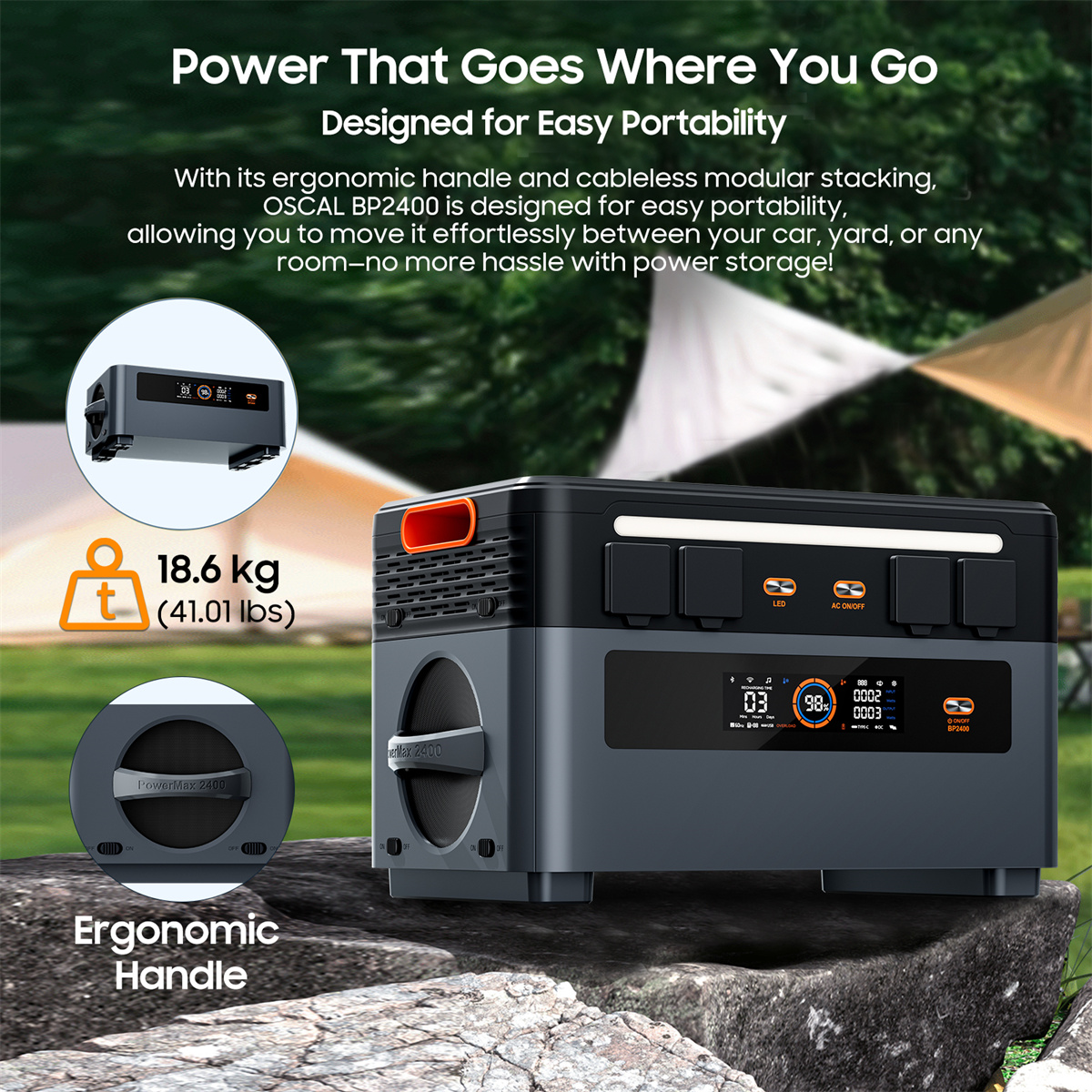

Weight	Approx. 18.6 kg (41.01 lbs)

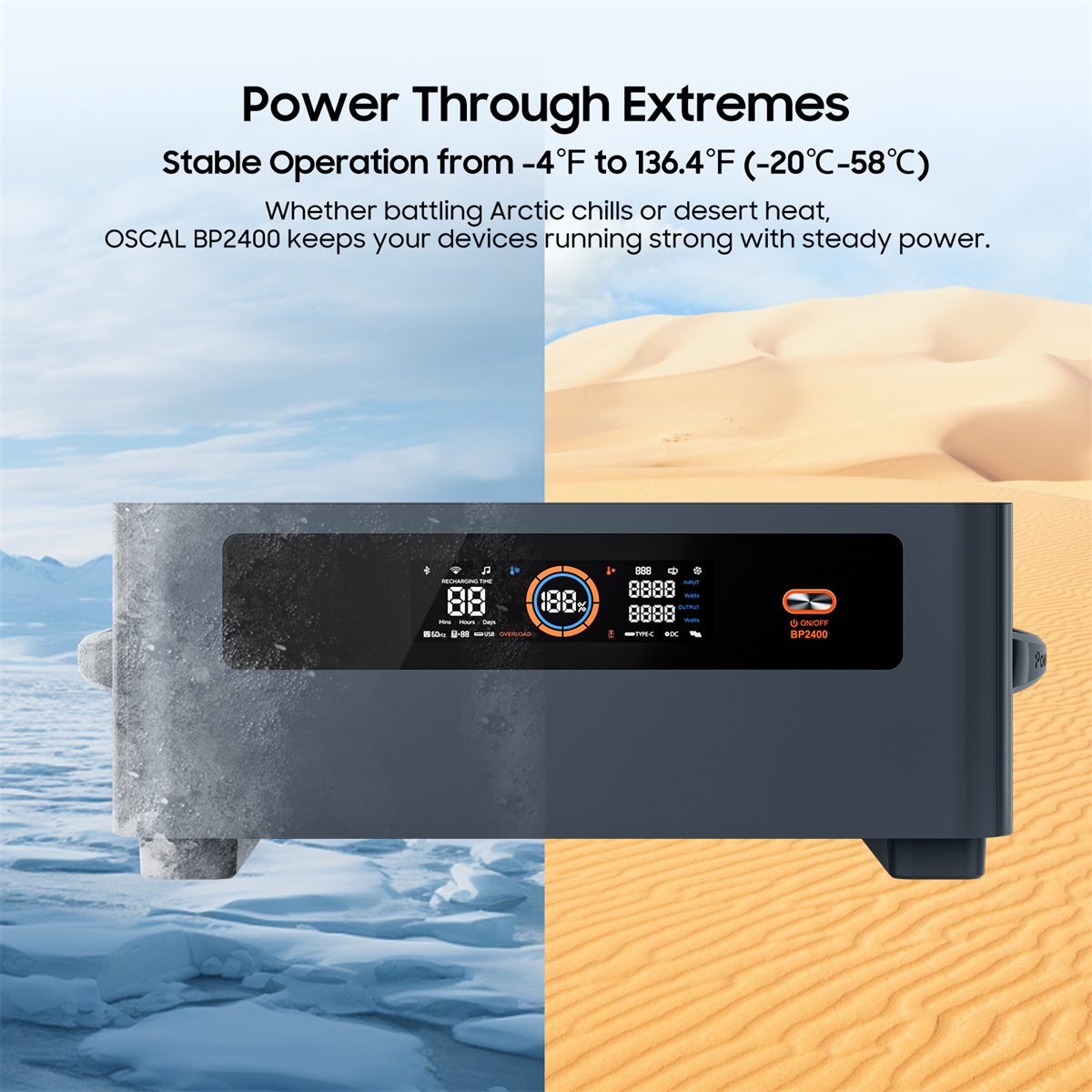

Operating Temperature	-4°F to 136.4°F (-20°C to 58°C)
Storage Temperature	-14°F to 113°F (-10°C to 45°C)

Features:

1. 16 Thoughtfully Organized Outputs

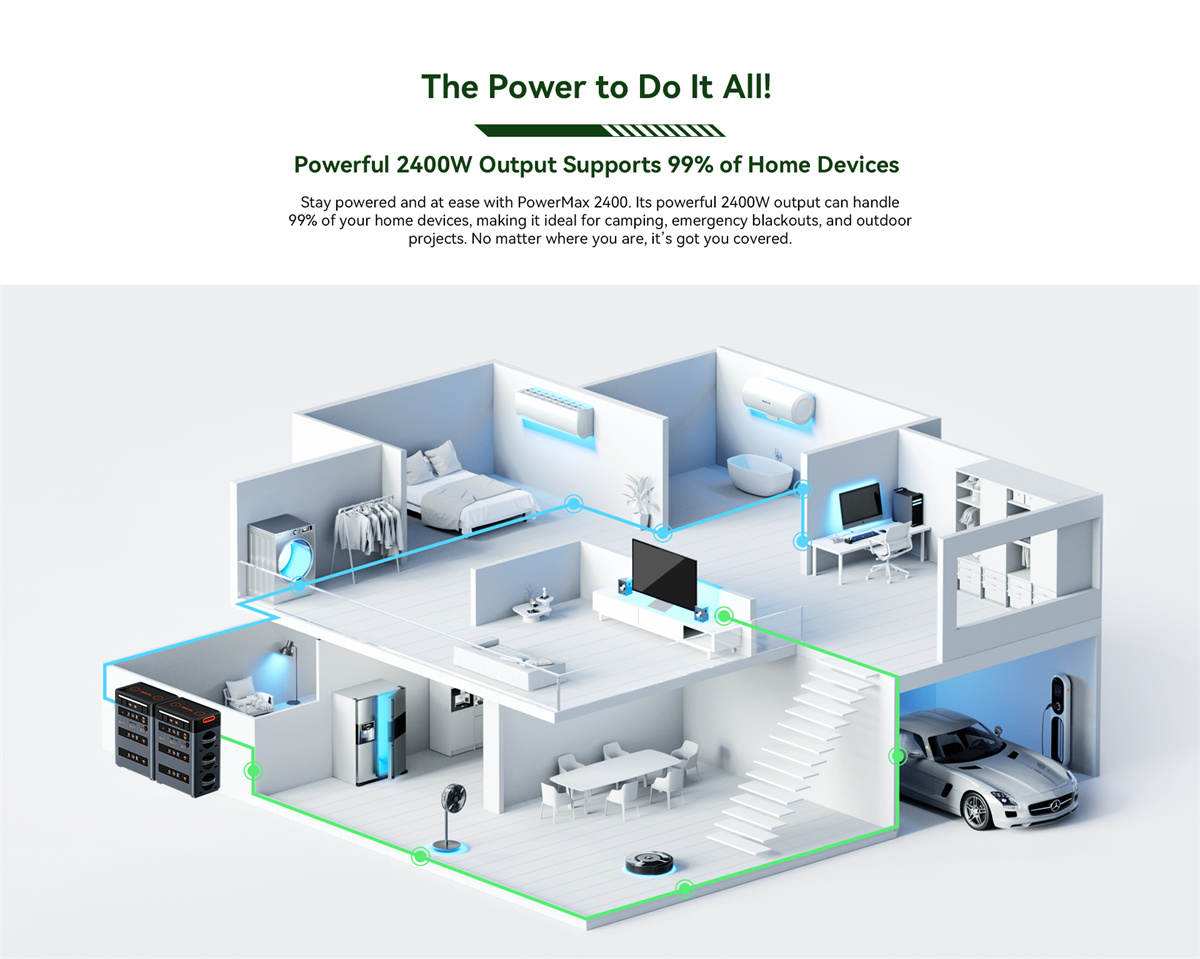

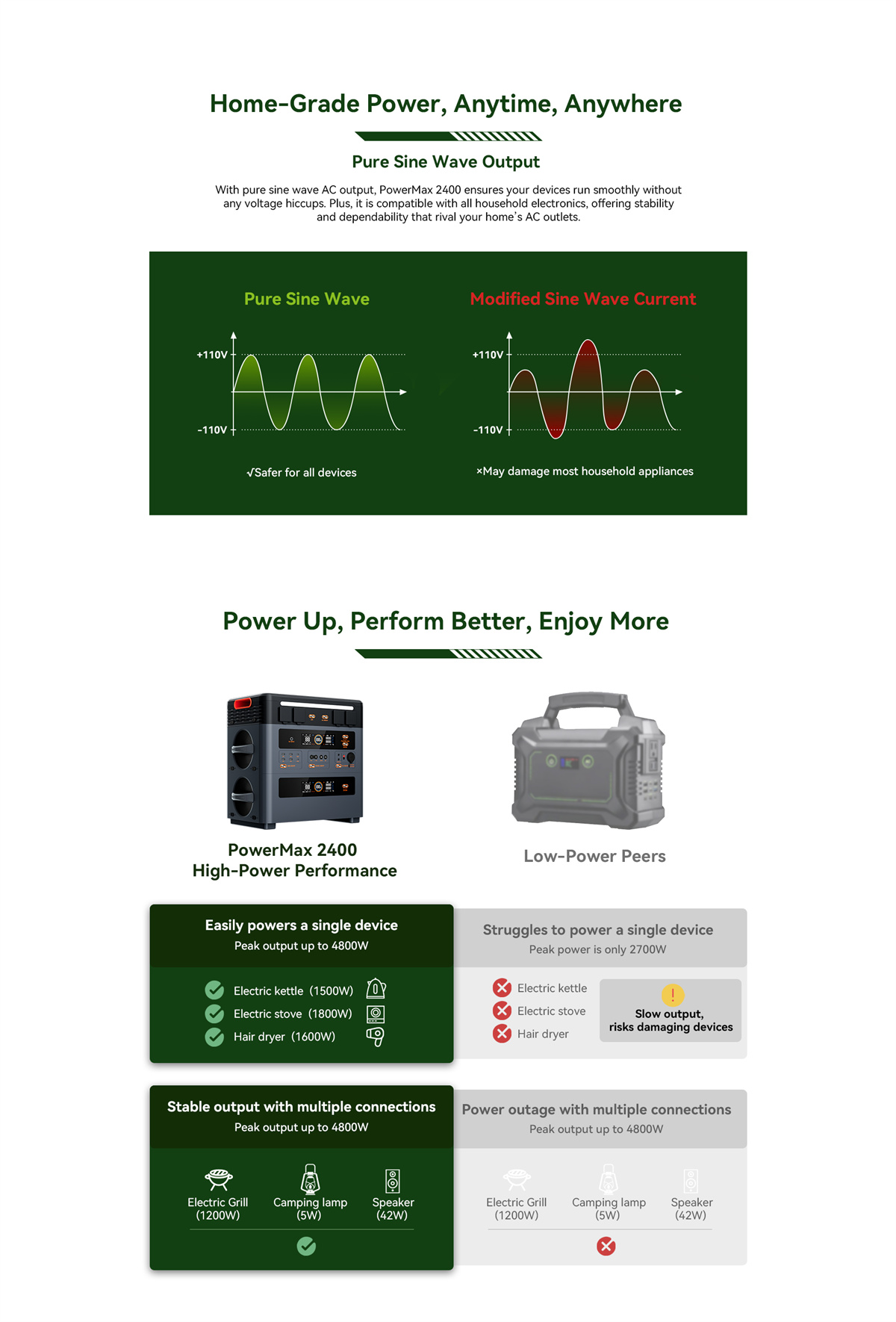

With a high-quality 2400W rated pure sine wave AC inverter, 16 output sources of Blackview Oscal PowerMax2400 can satisfy all your outlet needs to run your entire party, camping trip, or even your whole house in the event of an unexpected outage.
2. 20592Wh Max Battery

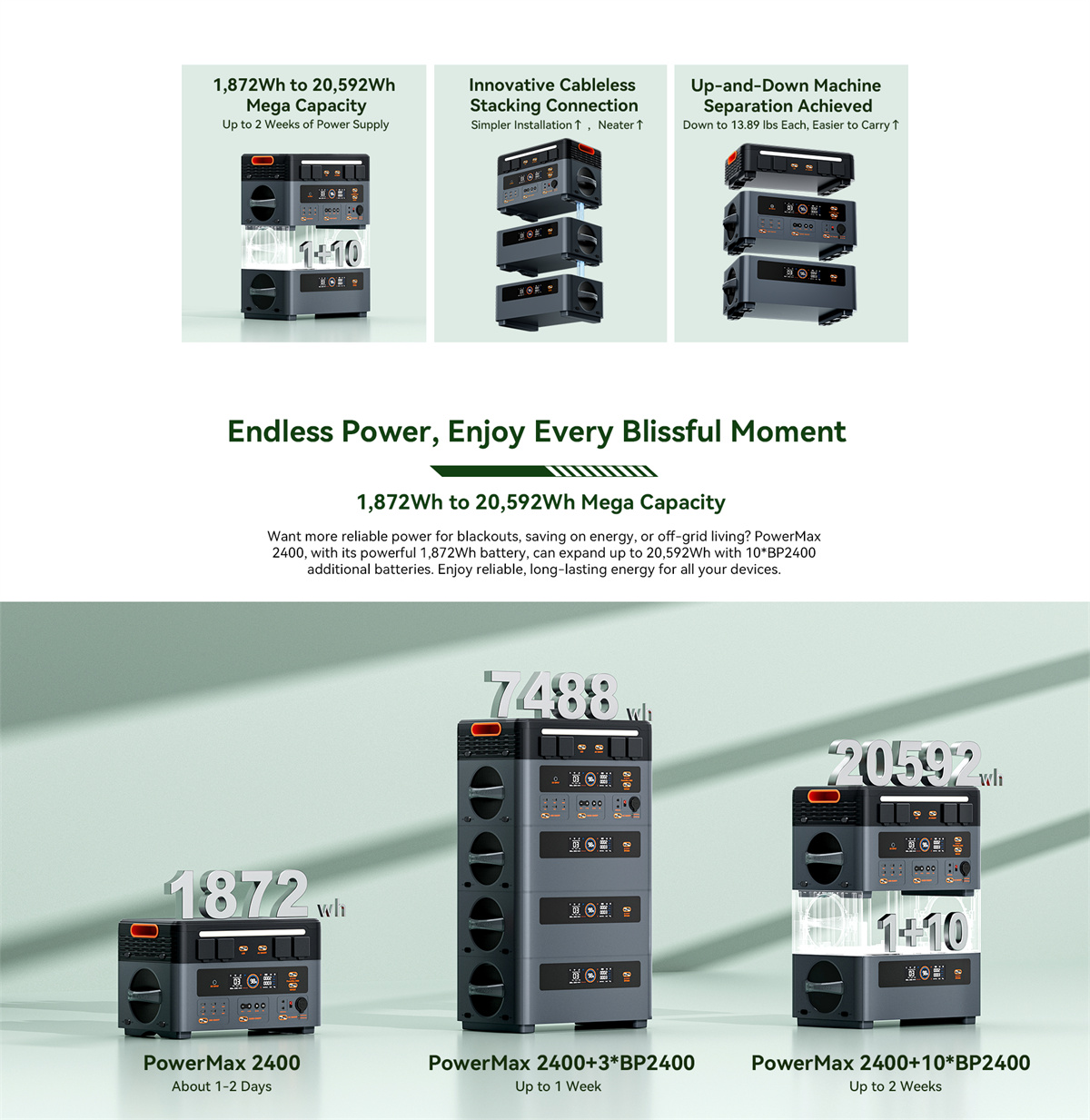

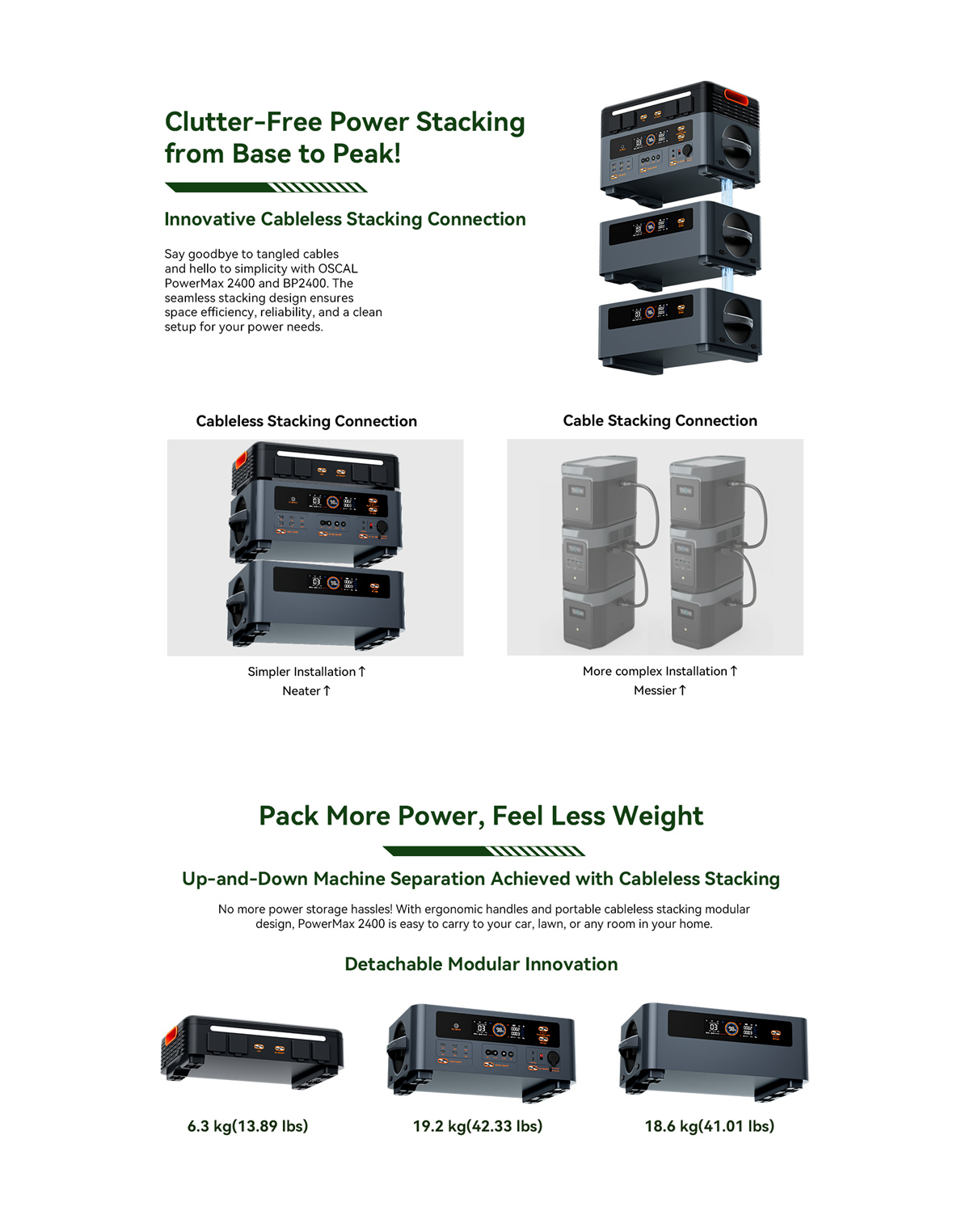

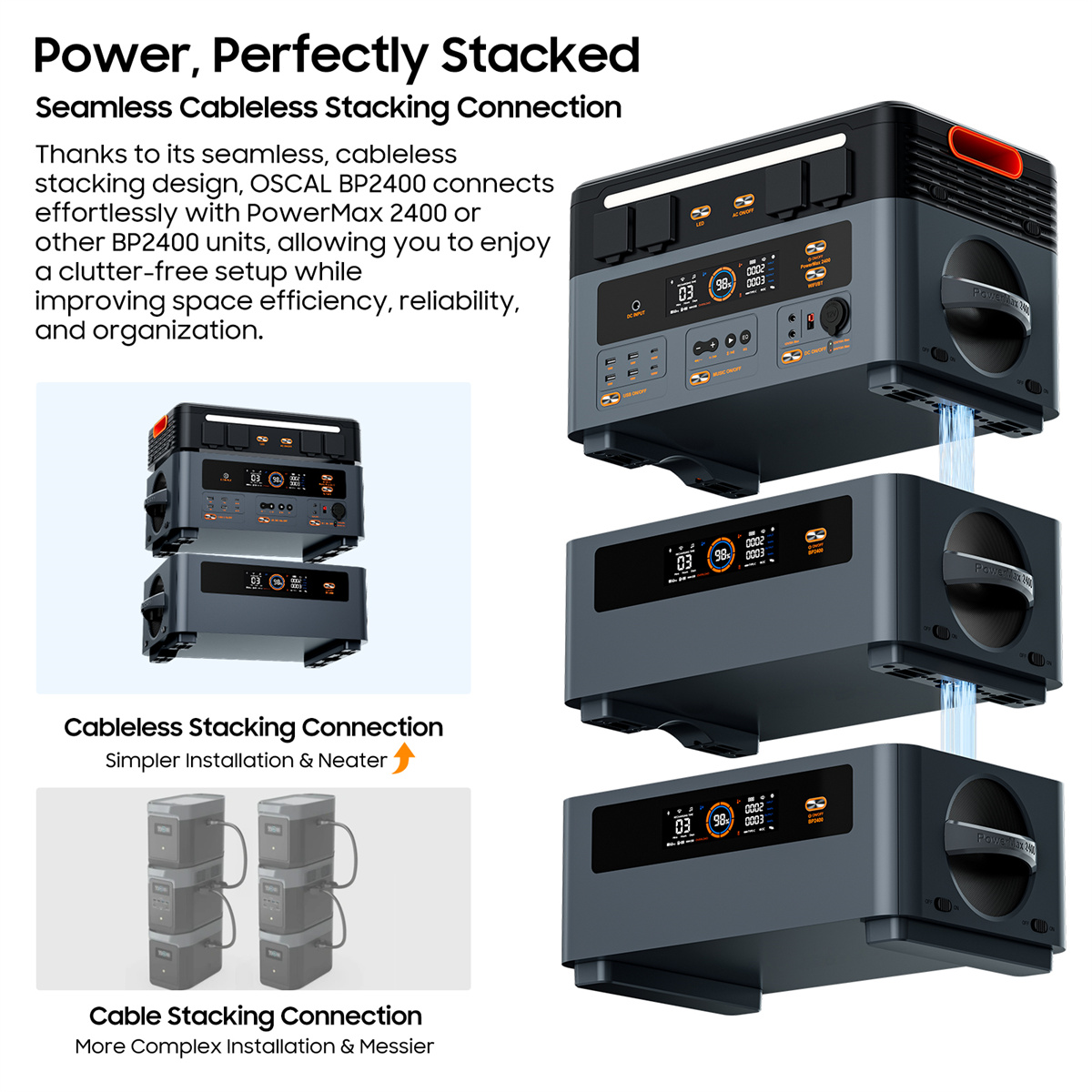

Catering to your various energy needs from outdoor to indoor activities, Blackview Oscal PowerMax2400 offers the flexibility to tailor your battery capacity with a 100% modular design, ranging from 1,872 Wh to 20,592 Wh with up to 10 Battery packs (2400 Wh/per pack).

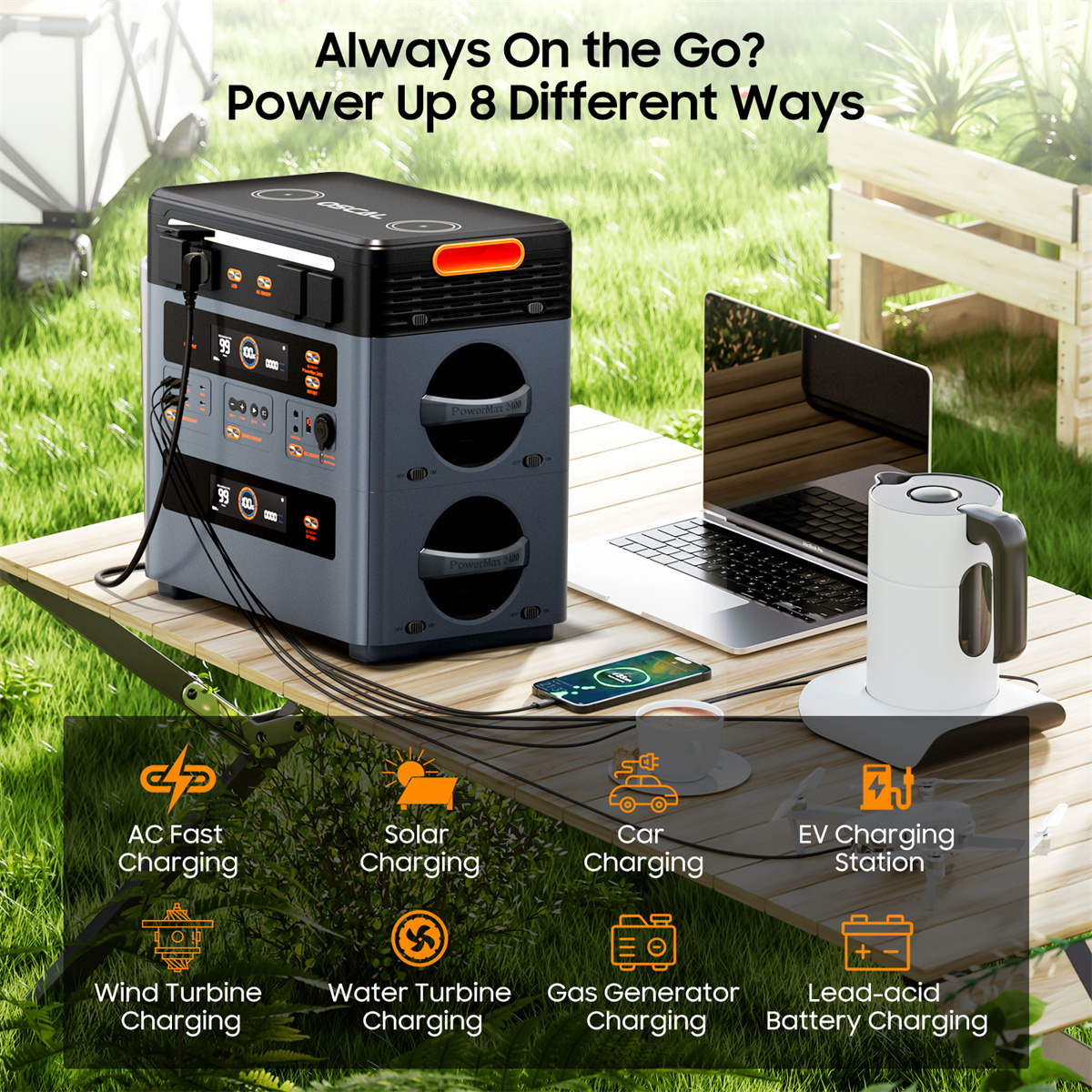

3. Fast and Multiple Charging Options: Supports AC, solar, EV charging, gas generator, lead-acid battery, and car charging; can fuel up to 80% in just 69 minutes.

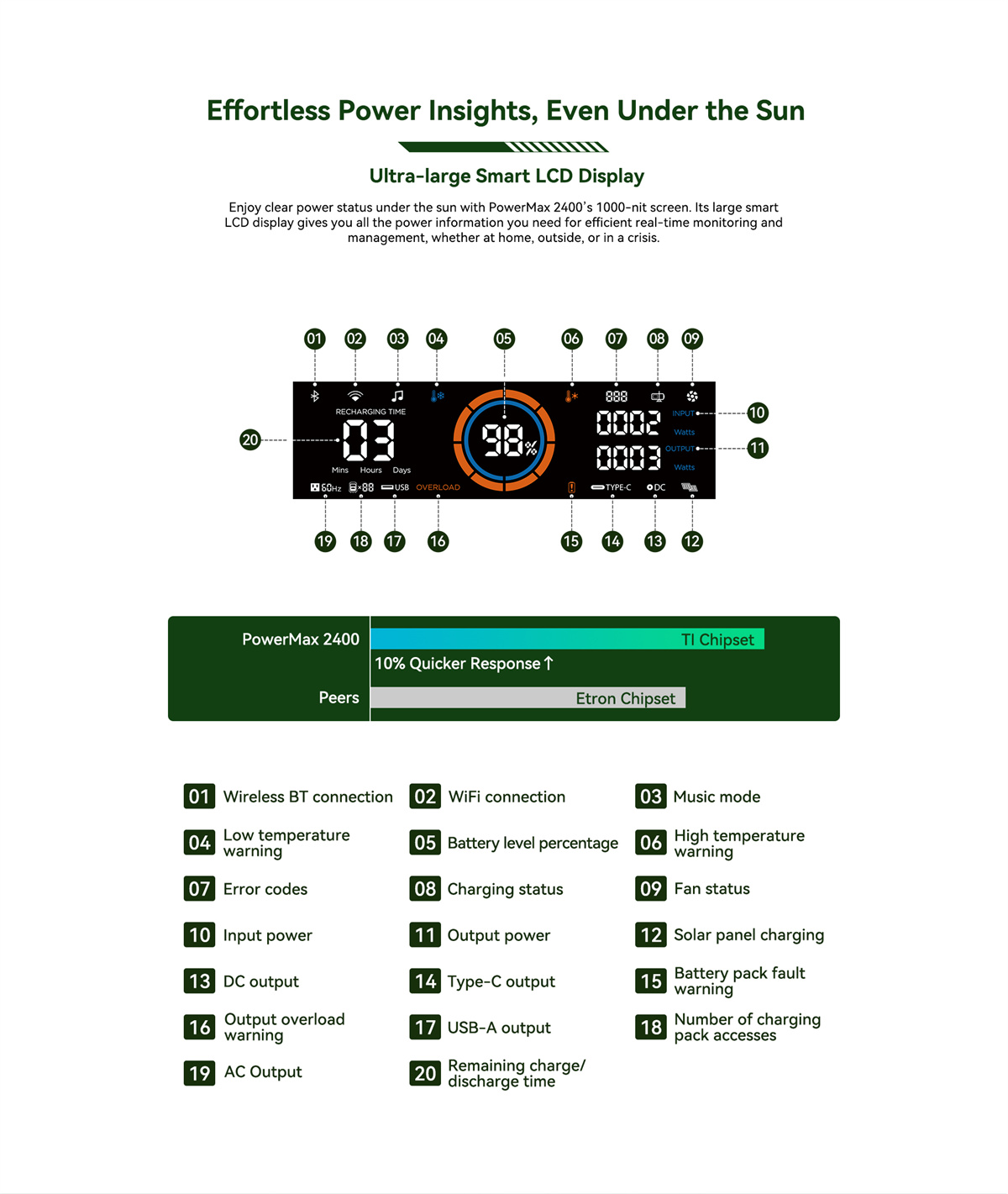

4. Built-In Advanced TI Chip: Improved button response time by up to 10%, ensuring efficient user experience.

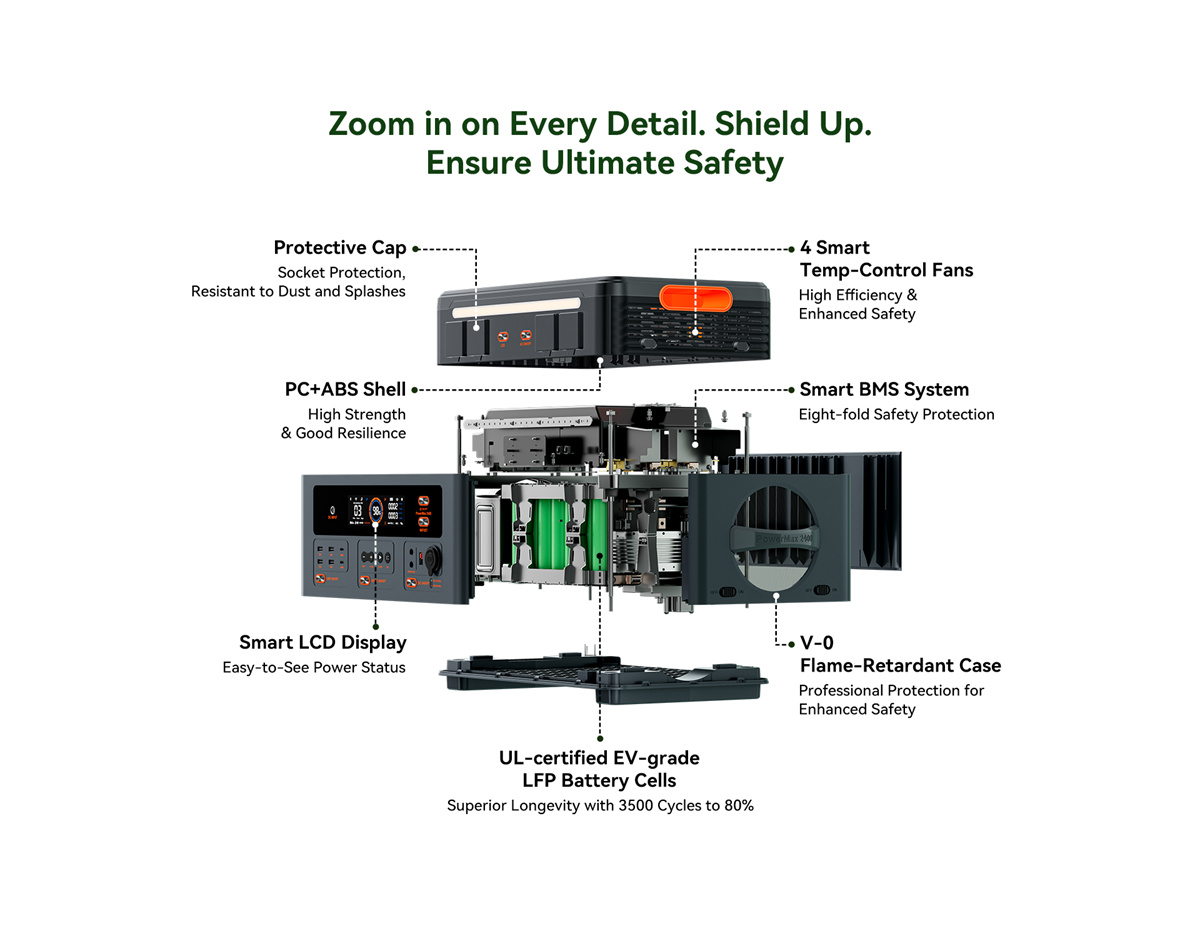

5. Safety Features: Integrated Intelligent Battery Management System (BMS) with eightfold safety protection including over-current, short circuit, over-voltage, under-voltage protections.
6. Long-lasting Design: Splash-proof, dust-proof, anti-UV, UL94V-0 fire-retardant, and can withstand a vertical drop from up to 0.8 meters.

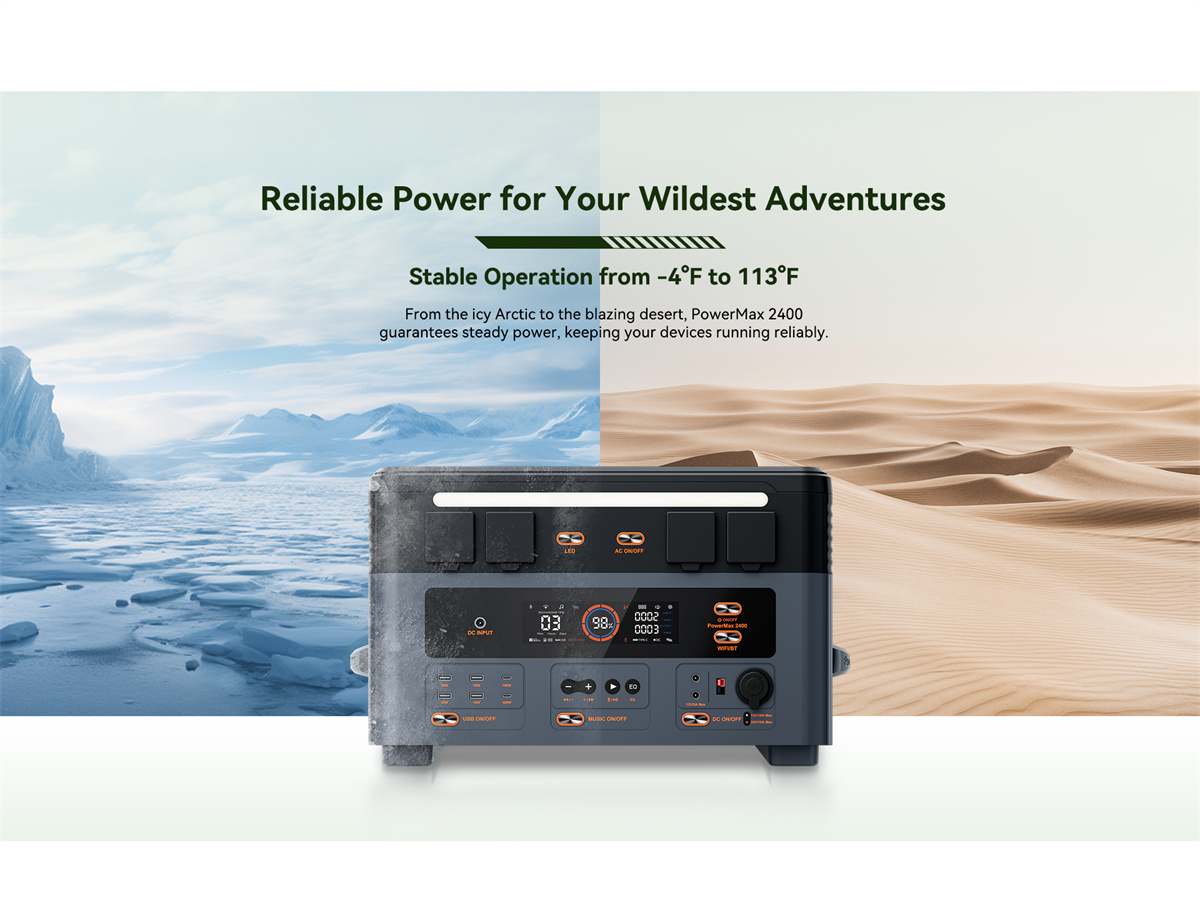

7. Temperature Resistance: Operates in extreme temperatures from -20°C to 55°C, making it suitable for diverse environments.

Package Include:

[Only PM2400 Power Station]:

1x Blackview OSCAL PowerMax2400 Power Station

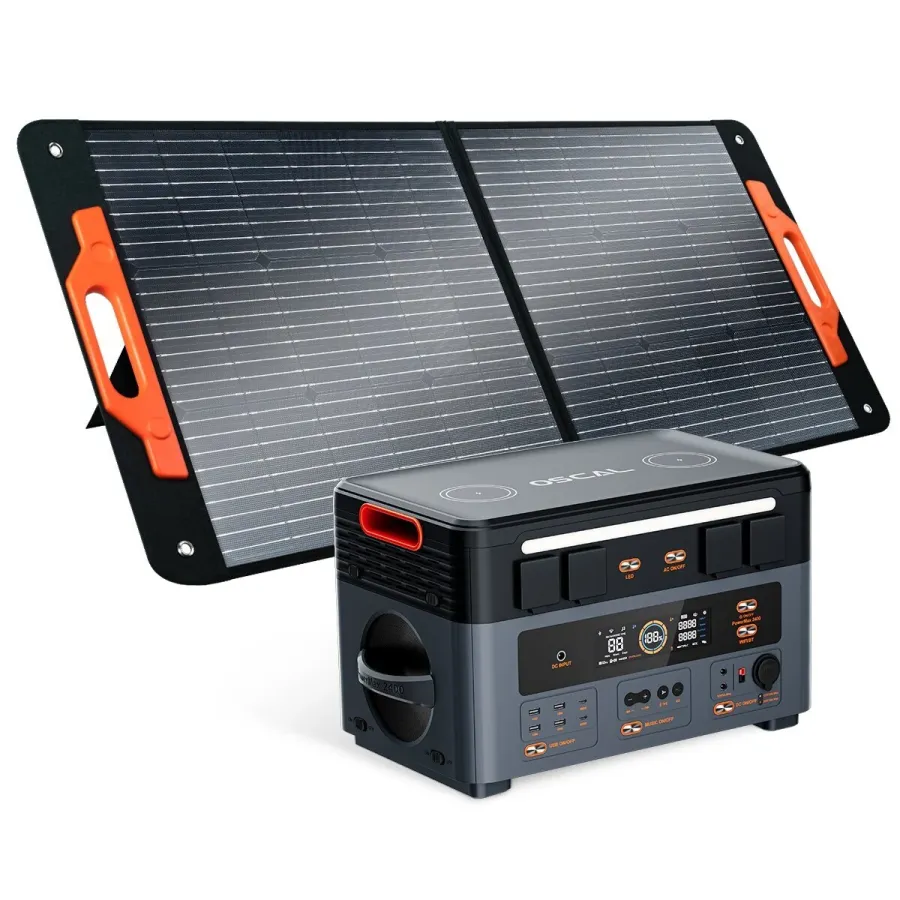

[PM2400+1*PM100]:

1x Blackview Oscal PowerMax 2400 Power Backup
1x PM100 Solar Panel
2x Cables
1x AC Charging Cable
1x Car Charging Cable
1x Solar Charging Cable
1x Manual

[PM2400+2*PM100]:

1x Blackview Oscal PowerMax 2400 Power Backup
2x PM100 Solar Panel
4x Cables
1x AC Charging Cable
1x Car Charging Cable
1x Solar Charging Cable
1x Manual

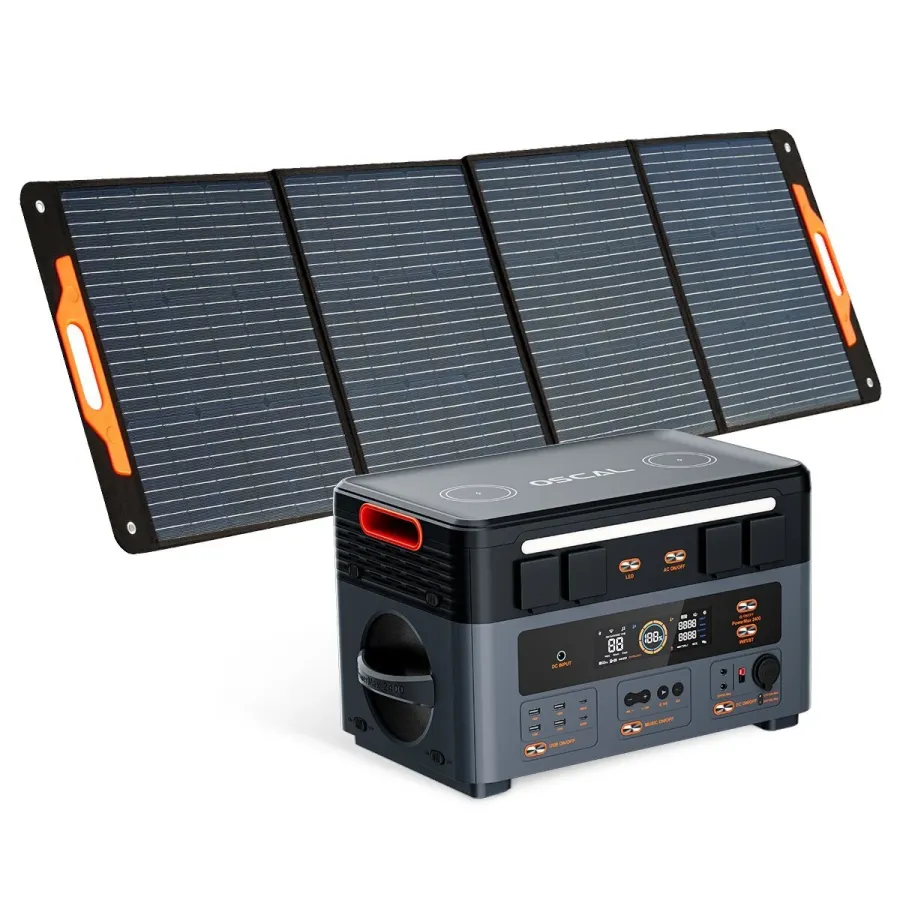

[PM2400+1*PM200]:

1x Blackview Oscal PowerMax 2400 Power Backup
1x PM200 Solar Panel
2x Cables
1x AC Charging Cable
1x Car Charging Cable
1x Solar Charging Cable
1x Manual

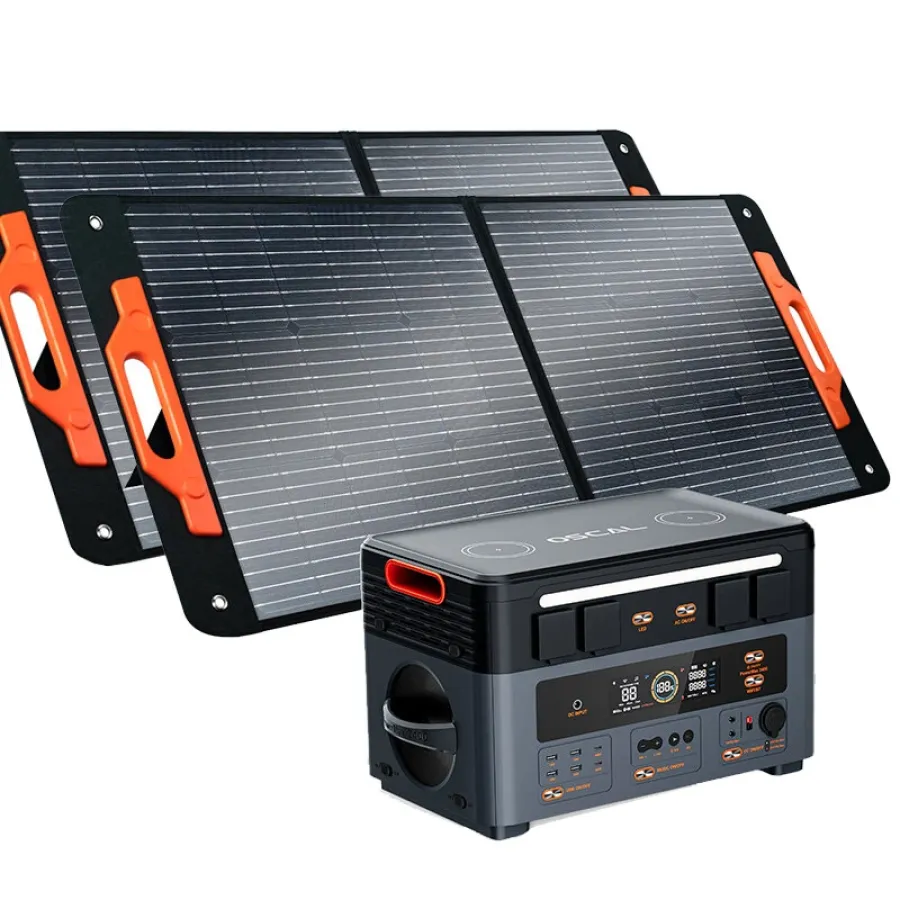

[PM2400+2*PM200]:

1x Blackview Oscal PowerMax 2400 Power Backup
2x PM200 Solar Panel
4x Cables
1x AC Charging Cable
1x Car Charging Cable
1x Solar Charging Cable
1x Manual

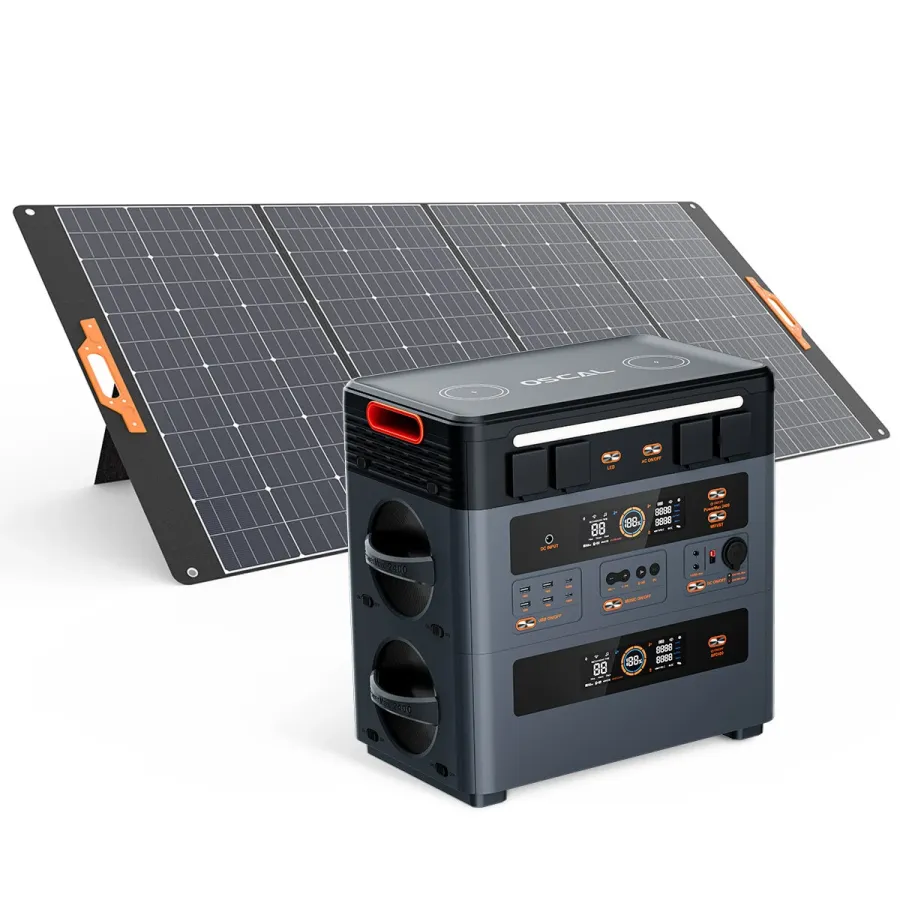

[PM2400+1*PM400]:

1x Blackview Oscal PowerMax 2400 Power Backup
1x PM400 Solar Panel
2x Cables
1x AC Charging Cable
1x Car Charging Cable
1x Solar Charging Cable
1x Manual

[PM2400+1*BP2400]:

1x Blackview Oscal PowerMax 2400 Power Station
1x BP2400 Battery Pack
1x Battery Expansion Cable
1x AC Charging Cable
1x Car Charging Cable
1x Solar Charging Cable
1x Manual

[PM2400+2*BP2400]:

1x Blackview Oscal PowerMax 2400 Power Station
2x BP2400 Battery Pack
2x Battery Expansion Cable
1x AC Charging Cable
1x Car Charging Cable
1x Solar Charging Cable
1x Manual

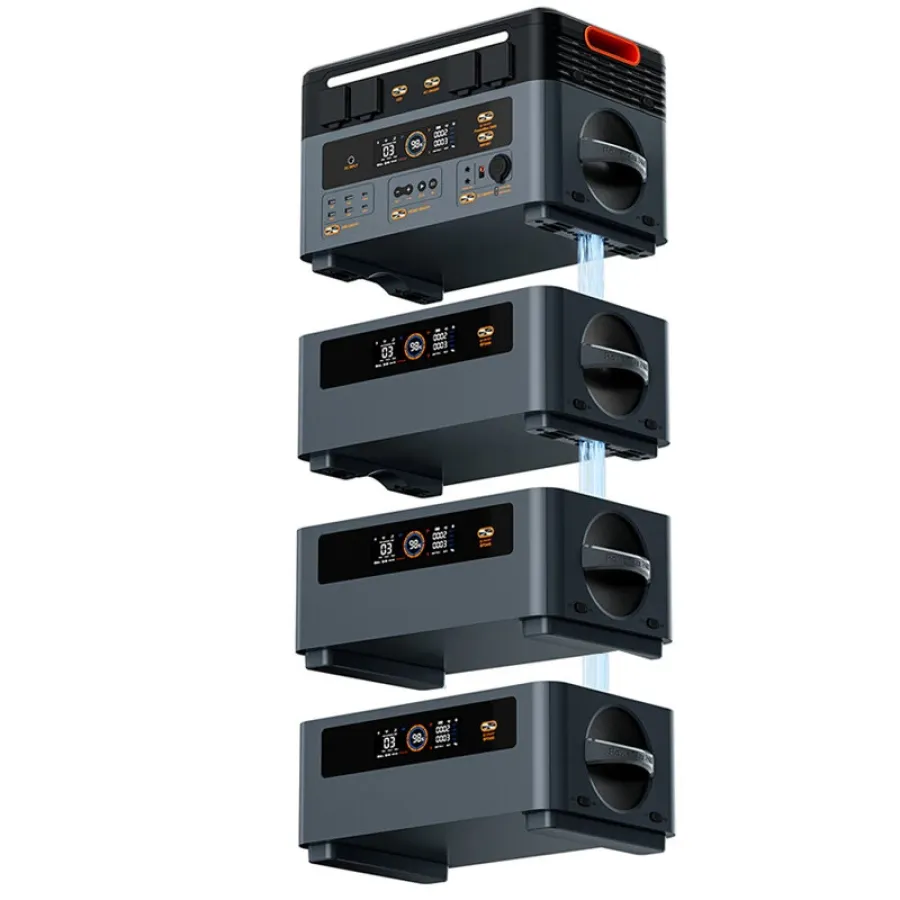

[PM2400+3*BP2400]:

1x Blackview Oscal PowerMax 2400 Power Station
3x BP2400 Battery Pack
3x Battery Expansion Cable
1x AC Charging Cable
1x Car Charging Cable
1x Solar Charging Cable
1x Manual
