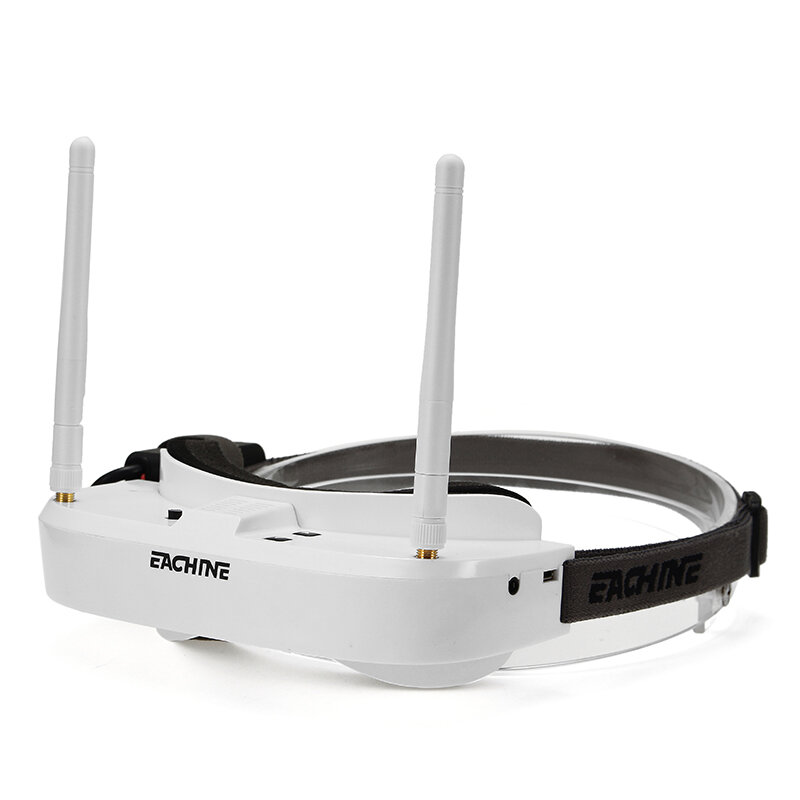

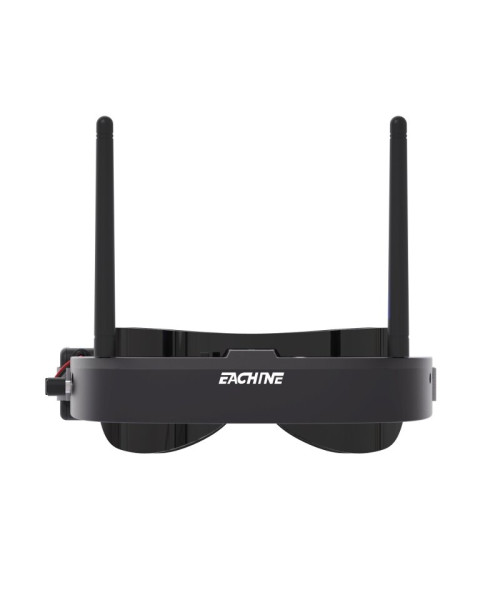

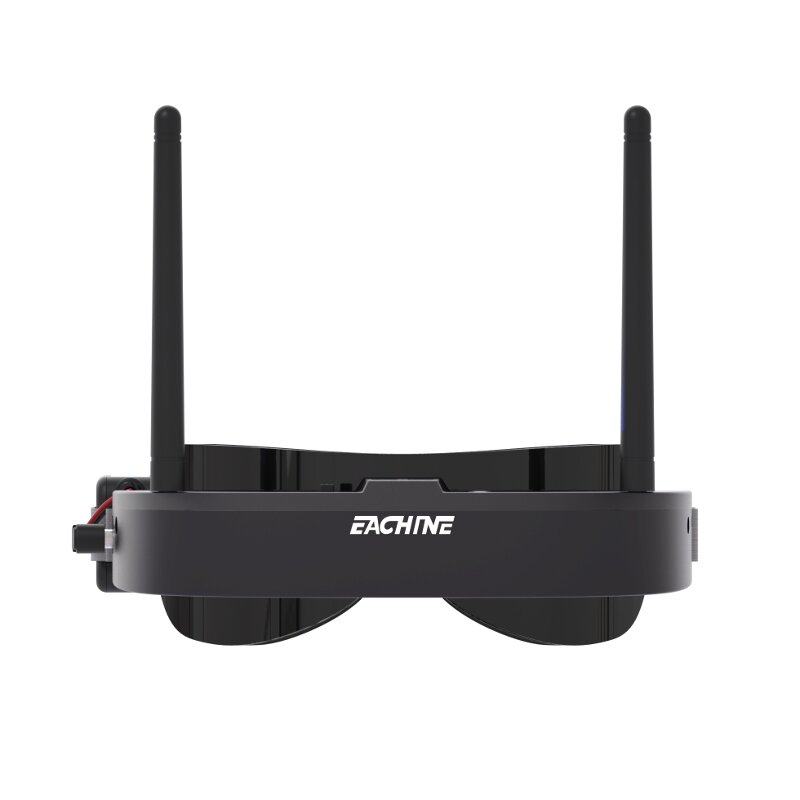

Eachine EV100 5.8G 72CH 720*540 FPV Goggles with Dual Antennas& Fan 18650 Battery Case For RC Drone

Note:

The battery will be changed to 18650 battery case in order to facilitate transport, and it doesn't have balance plug for DVR module, the DVR module should use another power supply, thank you for your understanding!

 The receiver on EV100 Goggles doesn't receive audio. But the goggles support audio input, that you can hear the audio if inputs the video to goggles.

Specification

Frequency :	5.8G 5333Mhz-5945Mhz
Sensitivity :	<=-93dB
Antenna Impedance :	50Ω
Antenna Gain :	3dBi
Antenna Connector :	RP-SMA
Video Formate :	NTSC/PAL
Support AV IN/OUT	YES
Support Focal Length/Brightness/Contrast Adjustment	YES
Suport Firmware Upgrading	YES
Power Input :	7.4V
Low Voltag :	6.8V
Battery :	18650 battery case
Charging :	USB Cable(not included)
Working Temp. :	-10℃-+40℃

Description

Brand Name :	Eachine
Item Name :	EV100
Size :	165mm*76mm*30mm
Weight :	221g(with battery 57g and antenna 13g)
Package Weight :	400g

Display

Resolution  :	720*540
FOV :	28° diagonal
IPD :	58-68mm
Ratio :	4:3
Focal length adjusting:	under 400 degree of myopia and hyporopia 150 degree

Recommanded Parts

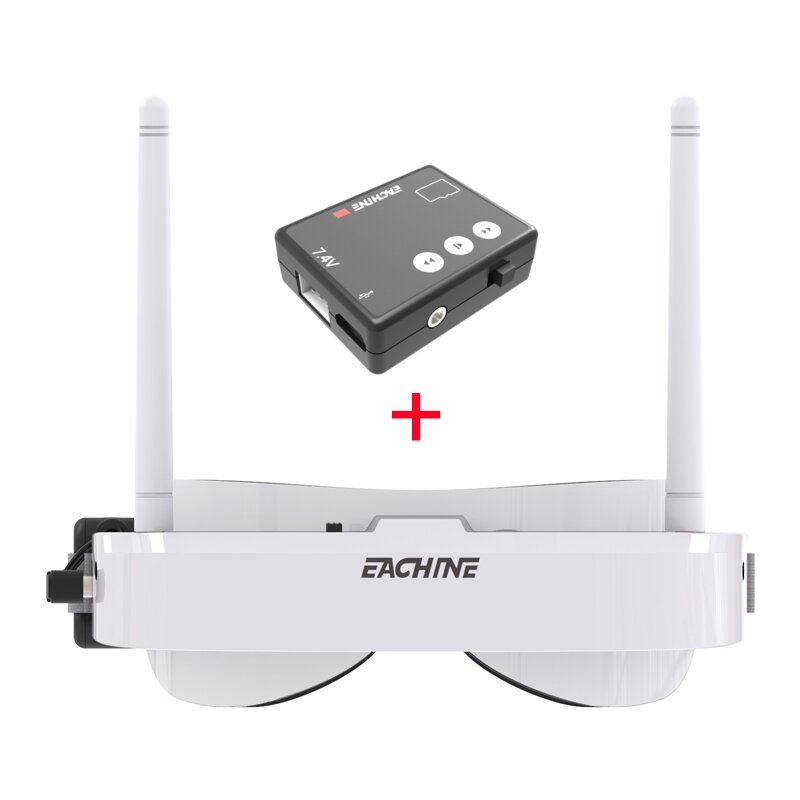

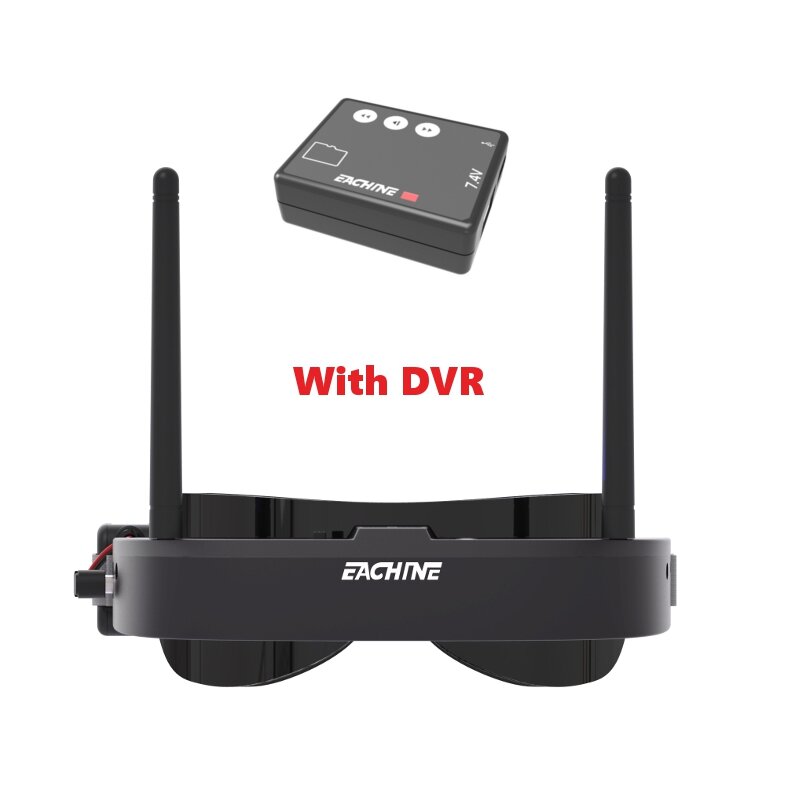

RecorderEachine EV100 Micro AV Recorder 1280*480 Mini DVR Module Support 32G TF, Click Here

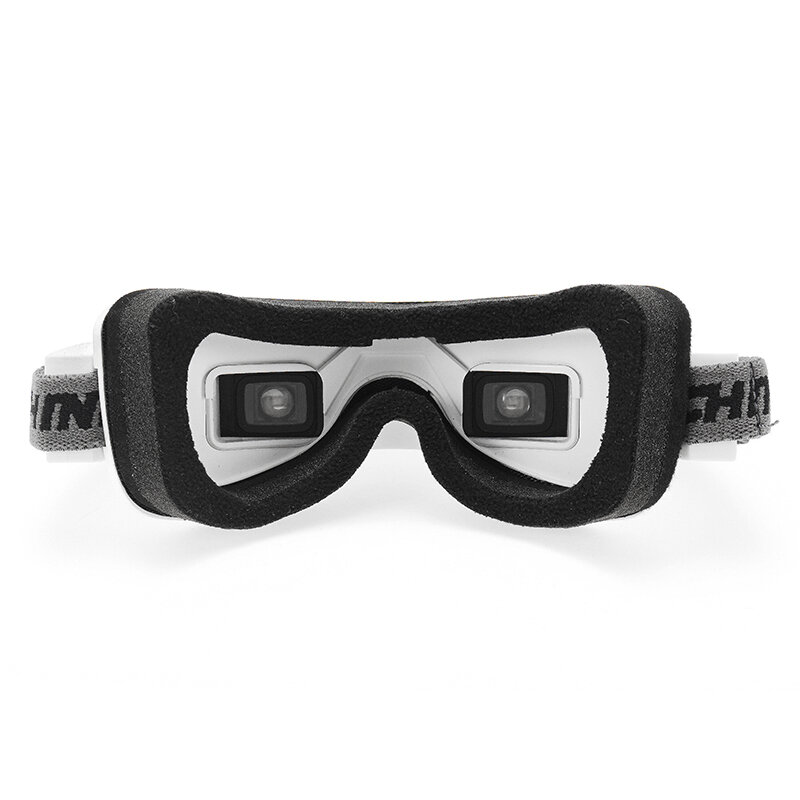

Goggles' Sponges

Eachine EV100 Upgraded Soft Thin Sponge  Click Here

Magic Double-sided Adhesive Tape  Click Here

Eachine EV100 FPV Goggles Headband Elastic Band Spare, Click Here

FPV VTX :

Eachine TX805 VTX 5.8G 40CH 25-200-600-800mW FPV Transmitter Click Here

EWRF 5.8G 48CH 100/200/400/1000mW Switchable VTX Transmitte with Small Camera Click Here

Tiny FPV Camera :

Eachine TX06 700TVL FOV 120° 5.8Ghz 48CH 25mW Smart Audio Mini FPV Camera Click Here

Battery

Spare Battery Box : Click Here
Eachine EV100 2S 7.4V 1000mah LiPo Battery, Click HereFPV Cable

Eachine USB Type A 80cm to USB Mini-B 5 Pins Adatper Cable, Click Here

Eachine EV100 HD Port to AV Convertor Transfer Module Only, Click Here

Eachine EV100 HD Port to AV Convertor Module Whole Set with Cable, Click Here
Eachine DC 3.5mm Jack Plug Male 1 to 3 Head RCA AV Input Output Video Cable, Click Here

Package Included

1 x Eachine EV100 5.8G 72CH FPV Goggles1 x 18650 Battery case （Battery not included）2 x RP-SMA 3dBi Antenna1 x User Manual
