HONGDUI HD-TB01 Precision Miter Gauge 0-70 Degree Woodworking Table Saw Push Handle 70 Angles Assembly Angle Ruler with Quick 0 22.5 45 67.5 Setting

The instruction manual is only for learning the whole set of installation and does not represent the actual product in the package.

Description:

HONGDUI HD-TB01 Precision Miter Gauge 0-70 Degree Woodworking Table Saw Push Handle 70 Angles Assembly Angle Ruler with Quick 0° 22.5° 45° 67.5° Setting

Specifications:

Product Name	Precision Miter Gauge
Material	Aluminum Alloy + Brass + Stainless Steel
Angle	0-70°
Angle Quantity	70 Angles

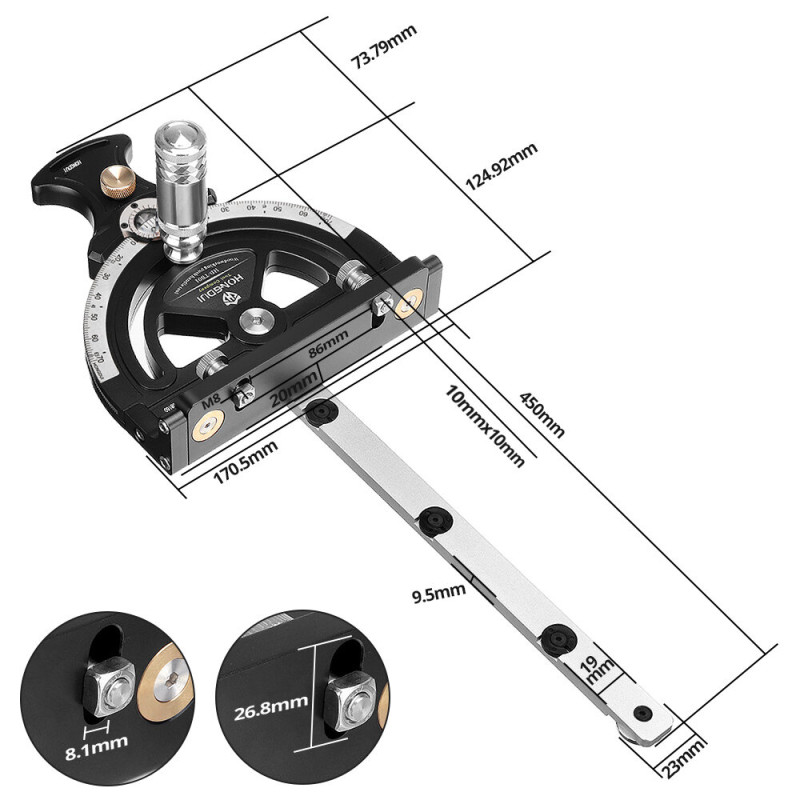

Miter Bar Length	480mm
Color	Black
Weight	1.5kg
Application	Wood Working Tool
Quantity	1 Pc × Miter Gauge

Features:

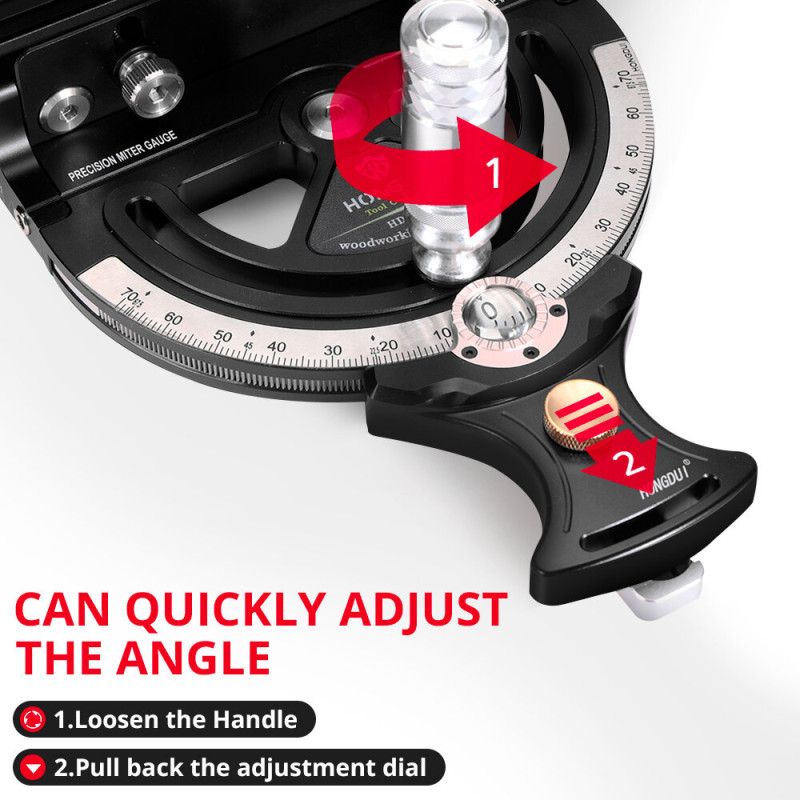

1. Adjust angle can be 0-70°, up to 70 angles, wider using range.

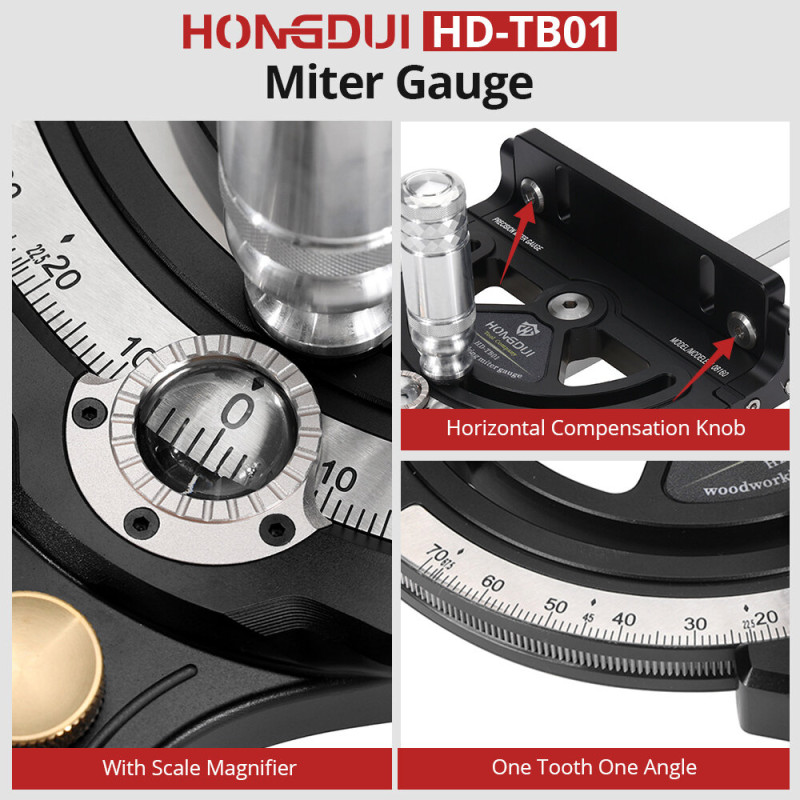

2. CNC wire-cut processing gear rack, one tooth one angle, more precision without shaking.

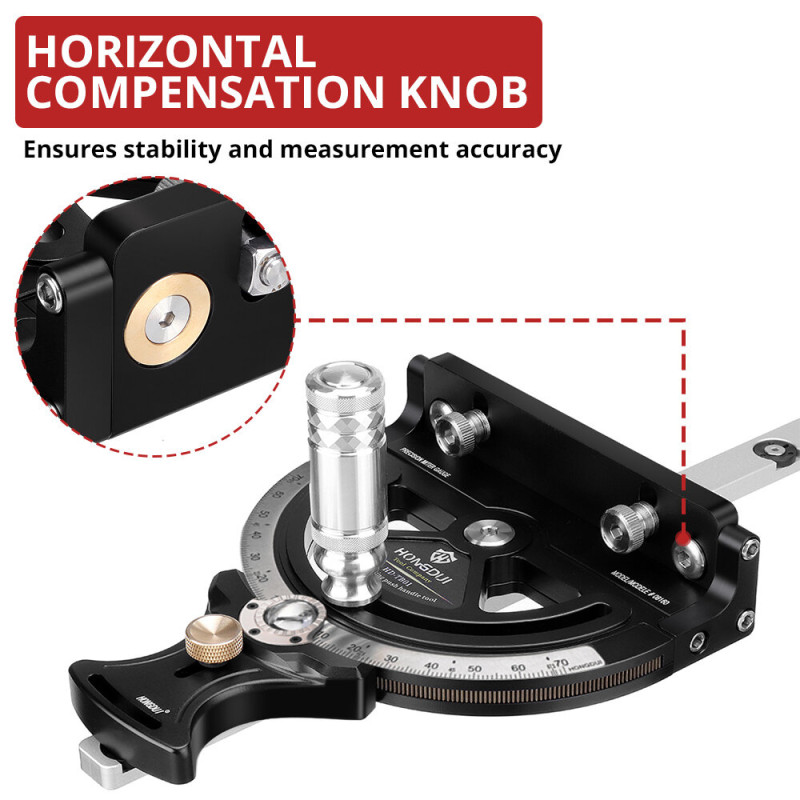

3. With horizontal compensation device.

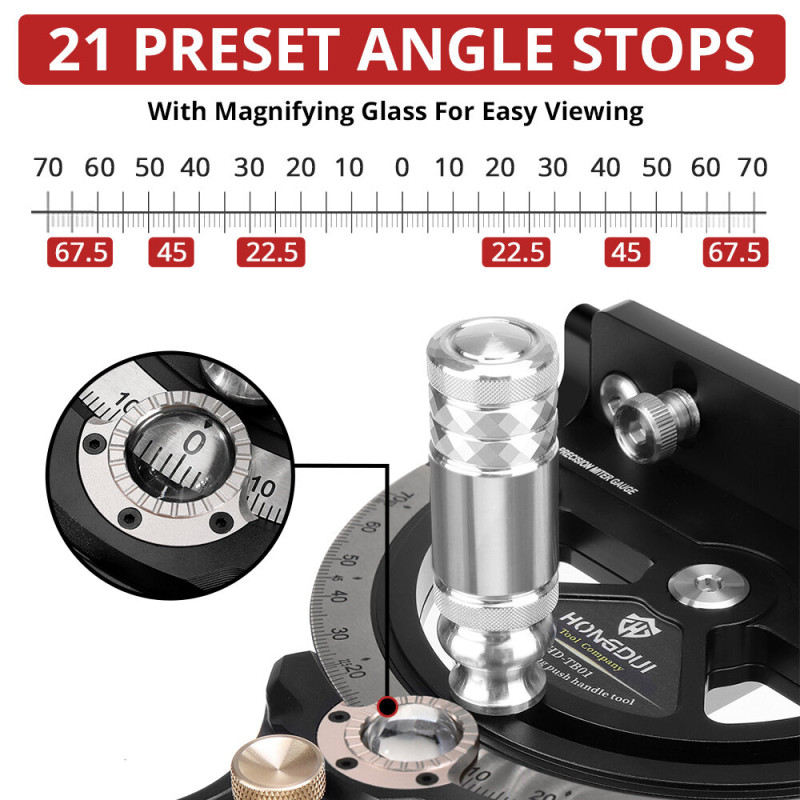

4. Quick positioning at the bottom of common sizes(0°, 22.5°, 45°, 67.5°)

5. With scale magnifier, easy to set and read, can be removable.

6. Craft handle, very comfortable to operate.

Package Included:

1 Pc ×

Miter Gauge(Model as your choice)

Compatible HONGDUI HD-KS22 Miter Gauge Fence ID: 1997052
