KAIWEETS KOTC02 Paint Thickness Gauge Magnetic Non Magnetic Metal Tester 0-2999m High Accuracy Backlit Display Calibration Data Storage Automotive Industrial

Specifications:

- Measuring Range: Magnetic material 0-2999µm; Non-magnetic material 0-2999µm

- Resolution: 0.1µm @ (0-99.9µm); 1µm @ (100-2999µm)

- Accuracy: ±(2+2%)µm @ (0-500µm); ±2.5%µm @ (500-2999µm)

- Minimum Measuring Area: Magnetic material 25x25mm; Non-magnetic material 25x25mm

- Minimum Curvature: Convex 5mm; Concave 30mm

- Minimum Substrate Thickness: Magnetic material 0.2mm; Non-magnetic material 0.05mm

- Screen: Segment screen

- Number of Data Storage: 30 sets

- Battery Specification: 2 x 1.5V AAA

- Working Temperature and Humidity: 0°C-50°C, 10%-80%RH

- Storage Temperature and Humidity: -10°C-60°C, 10%-70%RH

- Dimension: 120x52x26mm



Features:

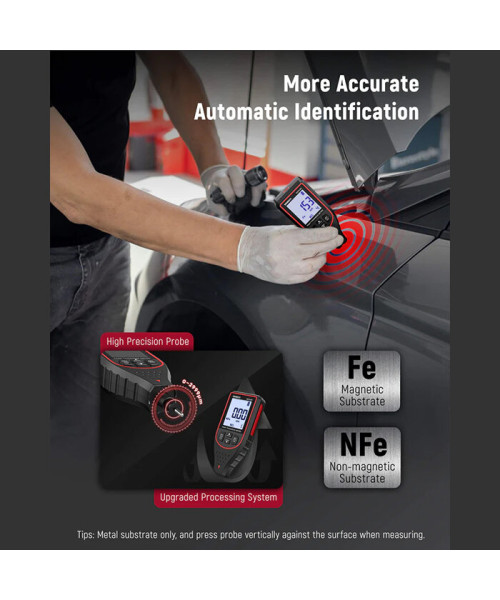

1. Fast and Efficient Measurement: This device delivers paint thickness readings in seconds, automatically identifying ferrous and non-ferrous materials for seamless performance.

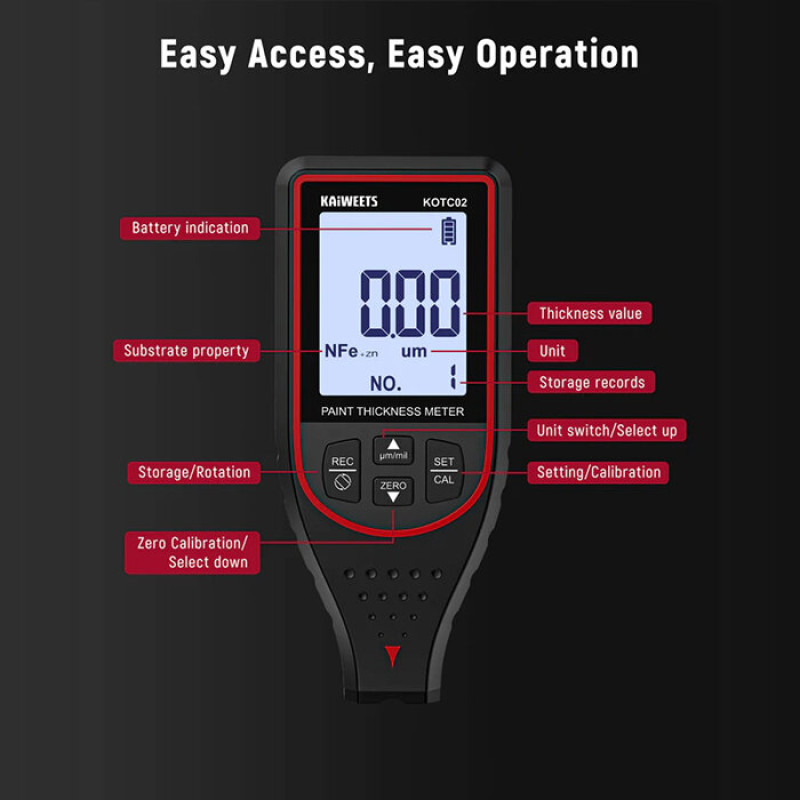

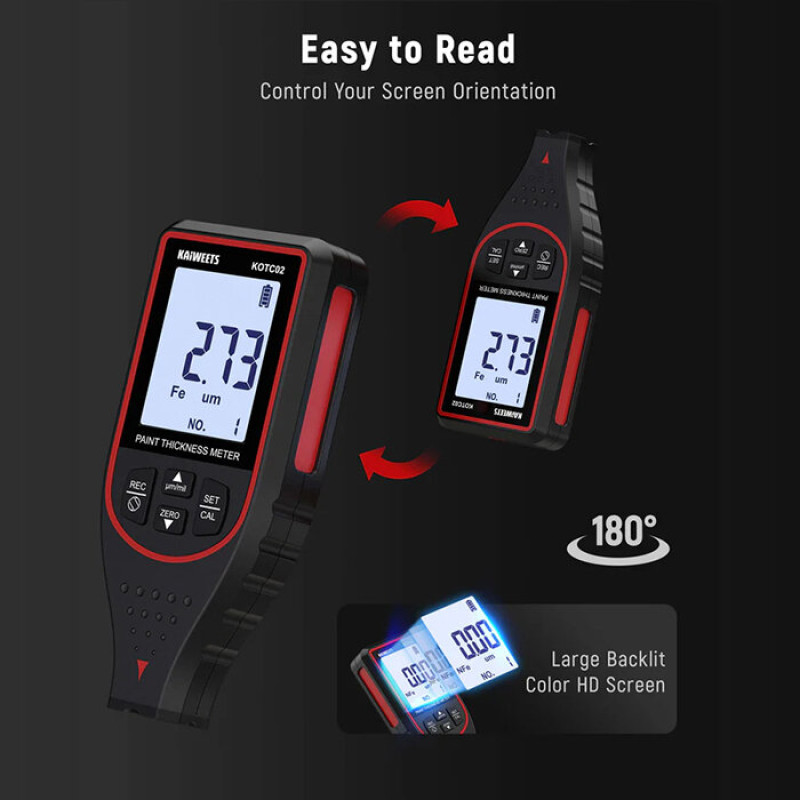

2. Rotatable Backlit Display: Equipped with a high-definition screen that rotates for easy reading, it provides details like metal type, measurement mode, battery status, and stored records in micrometers or mils.

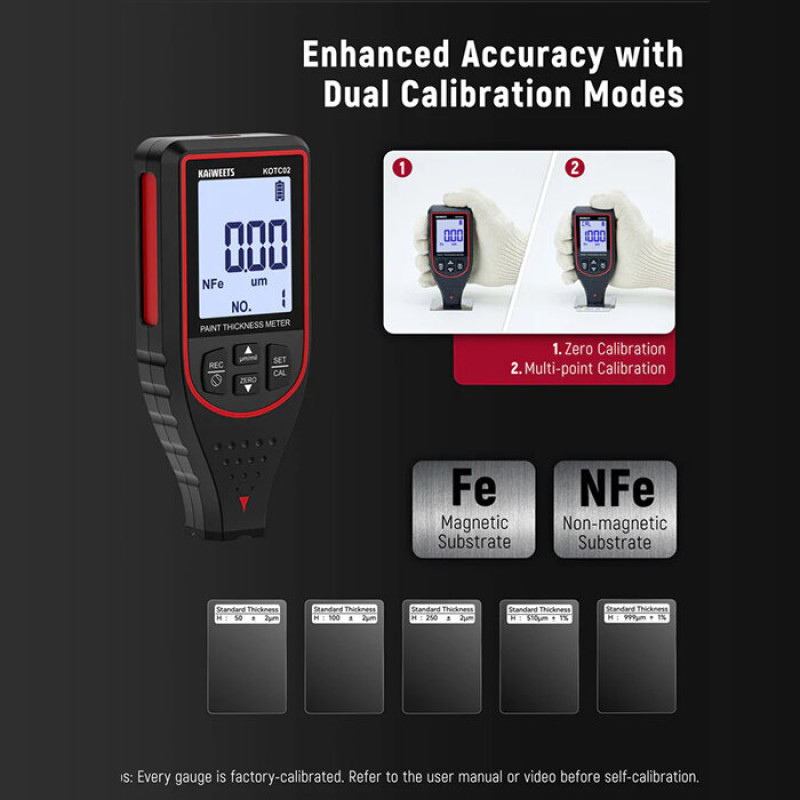

3. Multiple Calibration Modes: Factory-calibrated with both zero-point and multi-point calibration options, ensuring accurate results across varied scenarios and applications.

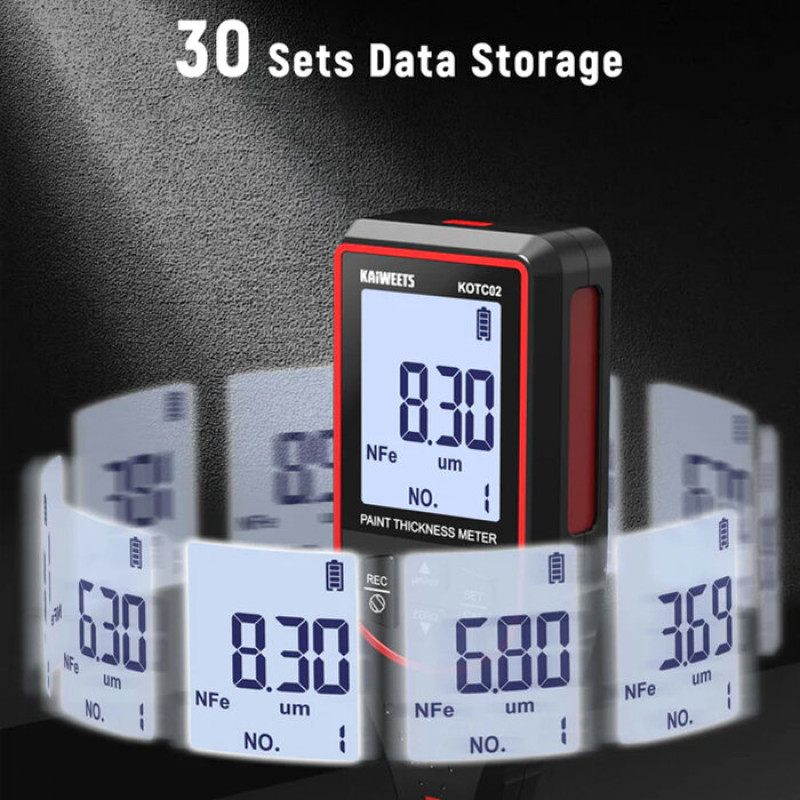

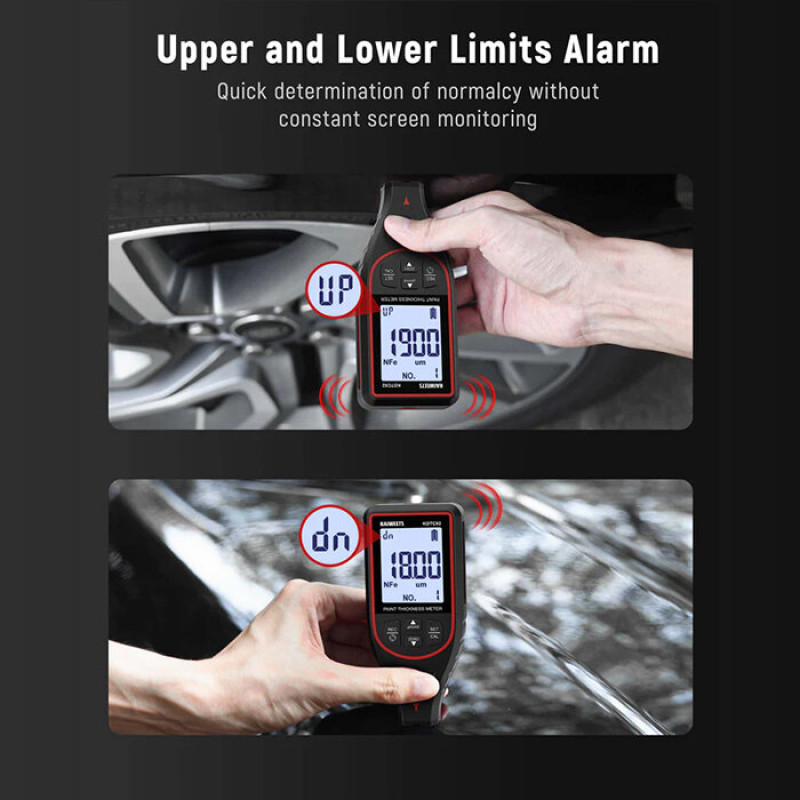

4. Data Storage and Alarm Limits: The ability to store up to 30 sets of d
