KAIWEETS KTI-200 Thermal Camera 240x240 IR Resolution 25Hz Refresh Laser Targeting 50 FOV 15 Color Palettes USB-C Massive 30K Image Storage Auto Tracking

Specification:

Infrared Resolution: 240 × 240 Pixels

Measurement Temperature Range: -20°C to +550°C (-4°F to 1022°F)

Sensor Type: Vanadium Oxide (VO) Microcalorimeter

Noise Equivalent Temperature Difference (NETD): ≤60 mK (@25°C, F#1.0)

Field of View (FOV): 50.0°(H) × 50°(V) / 72.1°(Diagonal)

Instantaneous Field of View (IFOV): 8.89 mrad

Frame Rate: 25Hz

Focal Length of Imaging Lens: 1.35mm

Temperature Measuring Focal Length: Adjustable from 0.3m to 3m

Temperature Resolution: 0.1°C

Emissivity: Adjustable from 0.01 to 1.00

Display Screen: 2.4 inches TFT LCD

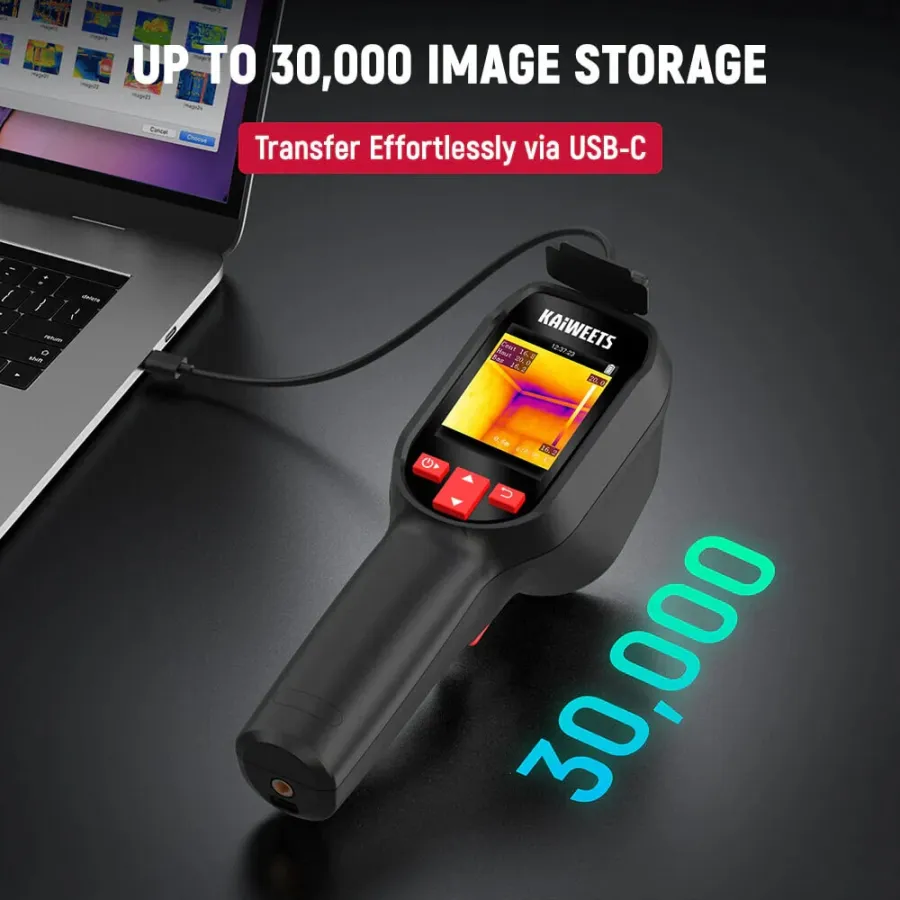

Number of Image Files: Up to 30,000

Charging Voltage/Current: 5V / 2A



Features:

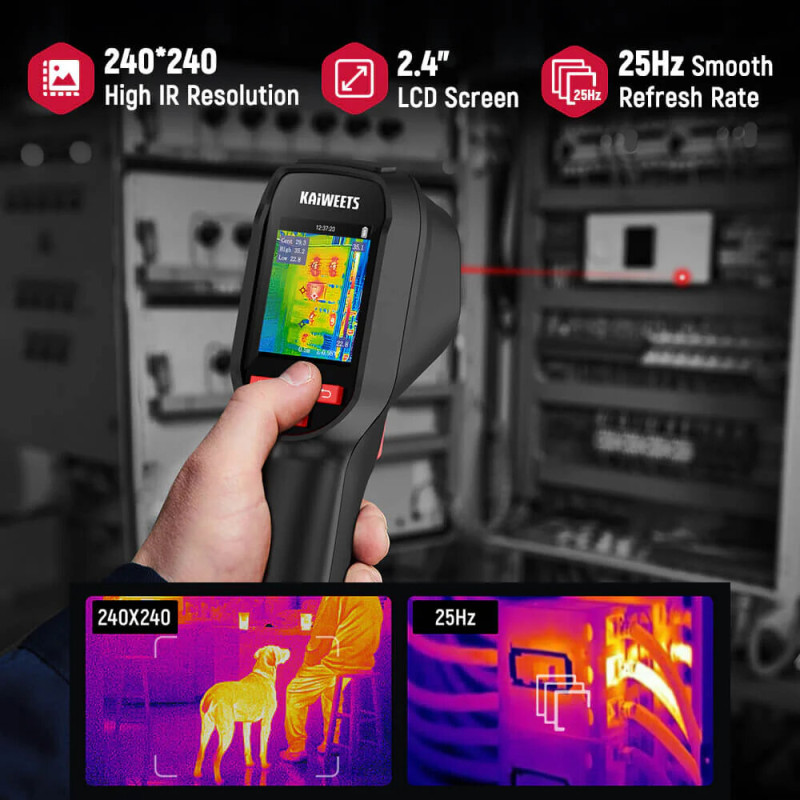

1. Capture Crisp Thermal Imagery: The KTI-200 thermal camera features 240x240 high IR resolution and 25Hz refresh rate for smooth thermal imaging, delivering crisp and detailed heat maps on the 2.4' LCD screen, ensuring no detail is missed.

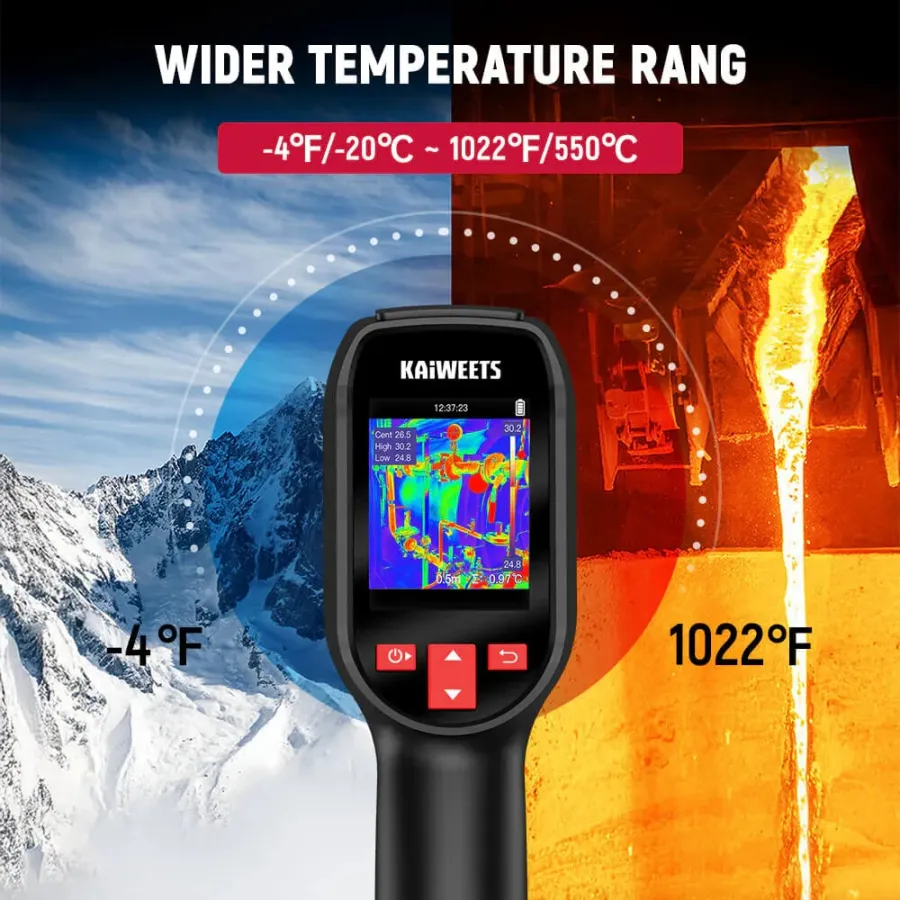

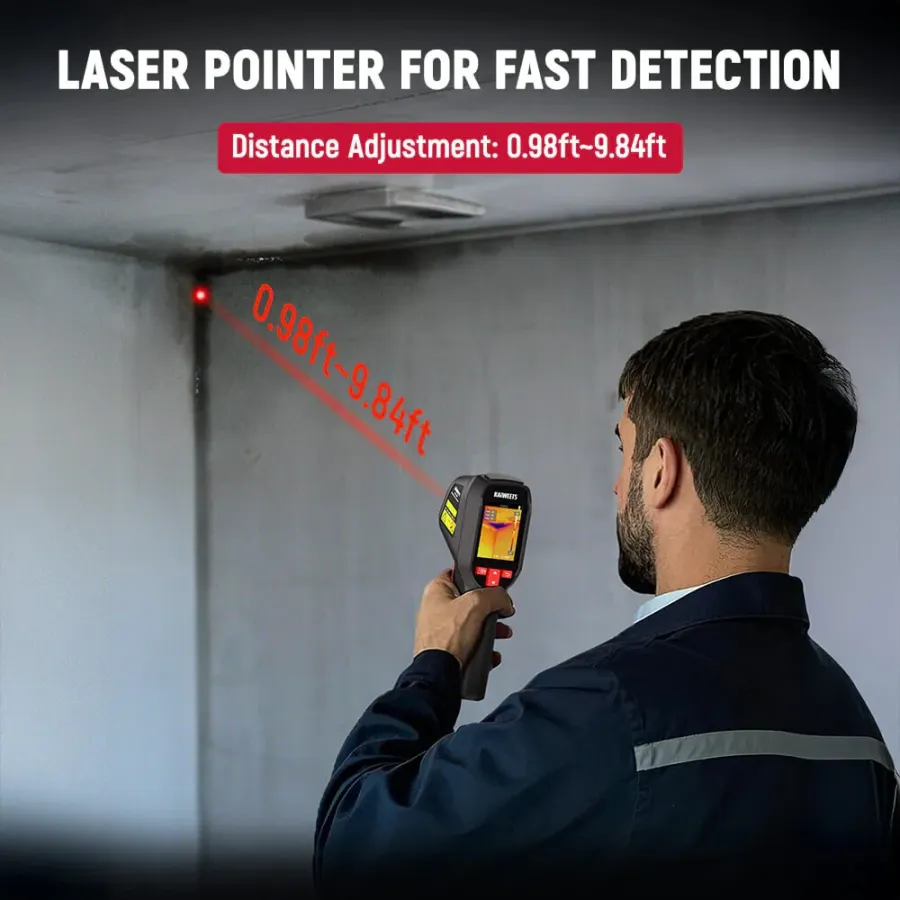

2. Laser-Assisted Targeting for Precision: The KTI-200 infrared camera measures wide temperatures range from -4°F to 1022°F with a built-in laser pointer for precise object alignment in low-light or cramped spaces. Features a 50° field of view for capturing large areas in detail, and offers ±2% accuracy for precise temperature measurements.

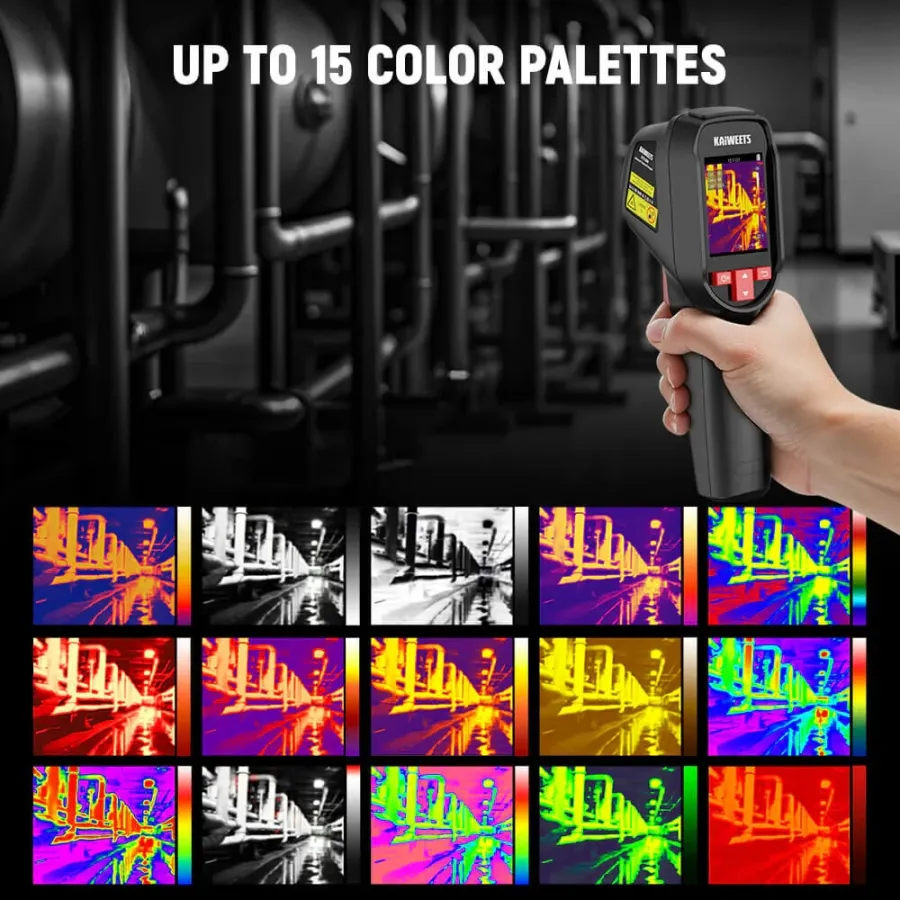

3. 15 Thermal Palettes for Enhanced Analysis: Outperform rivals with triple the color palette options (vs. 5-7 st
