KROAK F1 5-8KW 12V 24V Split Car Parking Heater Knob Remote Switch Smart With Muffler

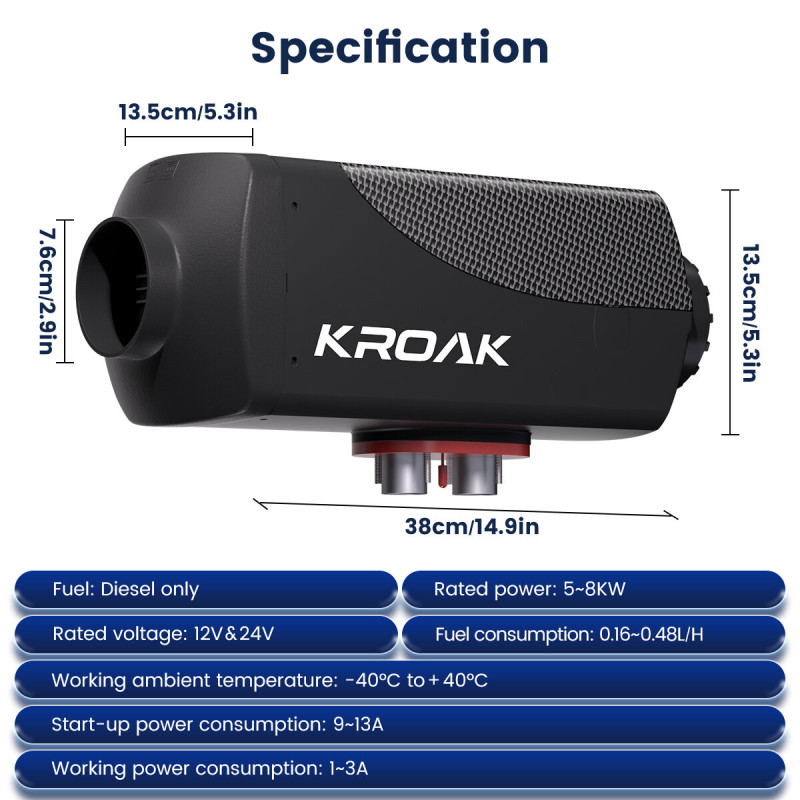

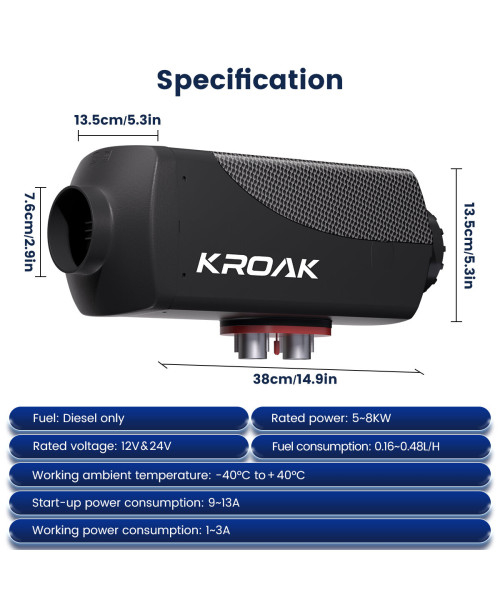

Specifications:
Input Voltage: 12V / 24V DC

Start-up power comsumption: 9-13AWoking power comsumption: 1-3A
Power: 5-8KW

Shell Colour: Black / Blue&Red / Blue&Gray

Fuel Consumption: 0.16 L/h - 0.44 L/h

Fuel Tank Capacity: 10L

Ramote control distance: 50-100m

Working ambient temperature: -40℃ to 40℃

Dimension: 38x13.5x13.5cm / 14.9x6x5.3x5.3in (LxWxH)
Function: Parking heating, engine preheating

Upgrade Highlights:

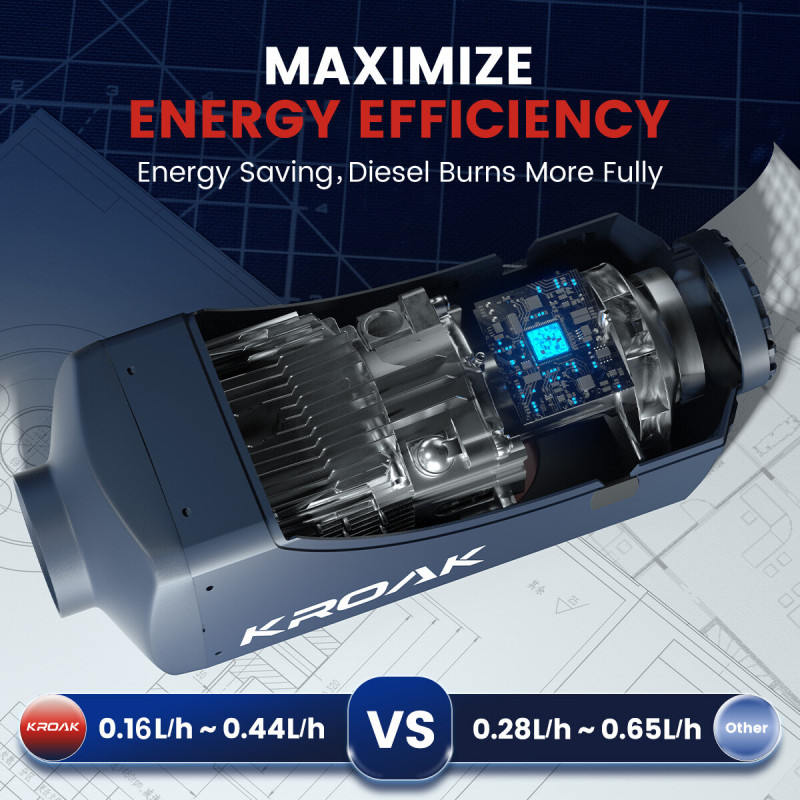

The combustion efficiency is improved (saving more than 20% of fuel), reducing the fuel consumption rate and being more environmentally friendly

Features:

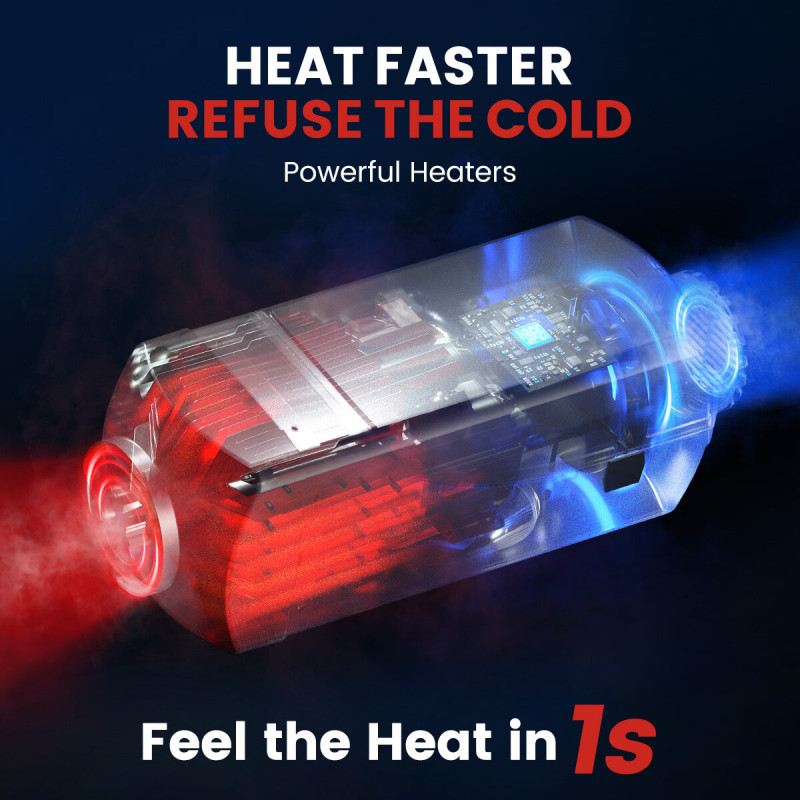

1. Fast Heating: With 5-8KW power, it quickly warms up your car engine and enhances heating efficiency.
2. Energy-saving: By preheating the engine, it reduces fuel consumption and minimizes engine wear in cold weather.
3. Remote Control: You can easily start the heater with a remote control, bringing convenience to your daily life.

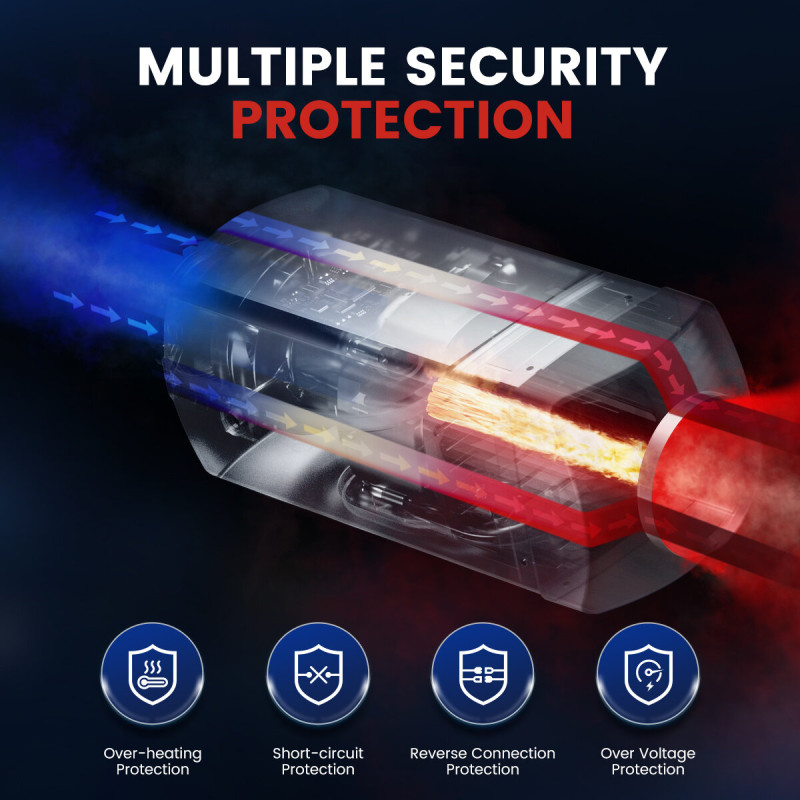

4. Safety Functions: Equipped with safety features like overheating protection and temperature control, ensuring safe usage.
5. Low Noise: This heater operates silently, ensuring a comfortable and quiet driving experience.

Package includes:
1 x Parking heater
1 x LCD remote control
1 x Air intake hose
1 x Air outlet hose
1 x Exhaust hose



Operation:

1. Query machine status (keep short press of the 'OK' key to switch one state at a time and display it in a loop) Time display →ambient temperature display → setting temperature display (automatic temperature stabilizing) / setting oil mass display (manual temperature stabilizing) → supply voltage display →altitude display - historical fault code display - press the 'OK' key to check

2. Fuel filling description manually Under the OFF state, press the down-regulate and setting key simultaneously to conduct fuel filling manually, which displays HOF, after releasing, press again and it displays HON, the oil pump starts to work. You can hear the sound of the oil pump and the oil pump icon lights up. Press down to display HOF, exit fuel refill, the oil pump icon disappears. The process of line air evacuation shall be done under watch, when the oil re-aches the position of the oil inlet of the machine, it can be stopped. If there is too much oil enters the machine, there will be black fog when igniting.

3. Description of temperature control mode switching Press the up-regulation and 'OK' key simultaneously to conduct temperature control mode switch. Manual temperature control (adjustment oil mass shows P-16, number represents the oil mass), automatic temperature control (adjustment temperature shows 25℃, number represents the temperature). The difference between the two ways of temperature control is that: in automatic mode, pump oil can re-ach the maximum upon parameter setting, when the machine heat is high, the manual pumping is limited to the current set value, which will not re-ach the maximum oil value set by the parameter. Plus, the gears are clearly shown, parts and components are equipped, very convenient for the old hands.

4. Description of Match Code by remote control Under the OFF state, press Power and OK keys simultaneously in remote controller first, then remote control appears waiting for matching text, thence, keep long press of down adjustment keys of LCD panel. It shows HFR - enter the remote code match interface, upon success, automatically exit the interface, then, it shows normal working parameter. If the code match failed, it would not enter the normal state of displaying working parameters. The code match state will be automatically exited when it did not receive remote control code timeout
